| Component Location |

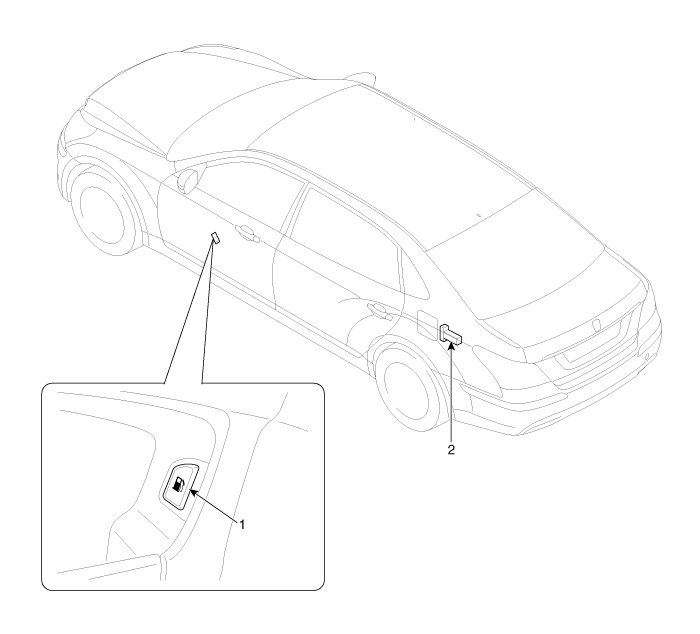

| 1. Fuel filler door open switch | 2. Fuel filler door release actuator |
Fuel Filler Door
...
Fuel Filler Door Release Actuator Repair procedures
Inspection
1.
Remove the trunk room left side trim.
2.
Open the fuel filler door and remove the housing.
(Refer to the BD group - "Exterior")
Do not reuse the fuel fill ...
