Hyundai Equus: Tilt & Telescope Control (SCM) Repair procedures - IMS (Integrated Memory System) - Body Electrical System - Hyundai Equus VI 2009-2025 Service ManualHyundai Equus: Tilt & Telescope Control (SCM) Repair procedures

Second generation VI (2009–2025) / Hyundai Equus VI 2009-2025 Service Manual / Body Electrical System / IMS (Integrated Memory System) / Tilt & Telescope Control (SCM) Repair procedures

Inspection
Ims Mode Setting With GDS
1.
You can turn ON/OFF of IMS tilt & telescope control option with the user option program.
2.
Select model and "body control module" menu.
3.

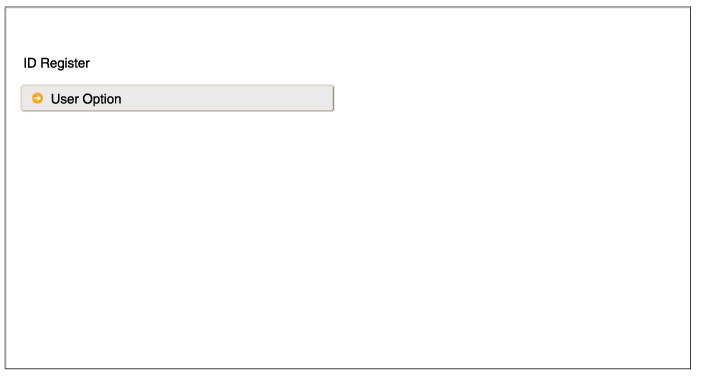

Select the "user option".

4.

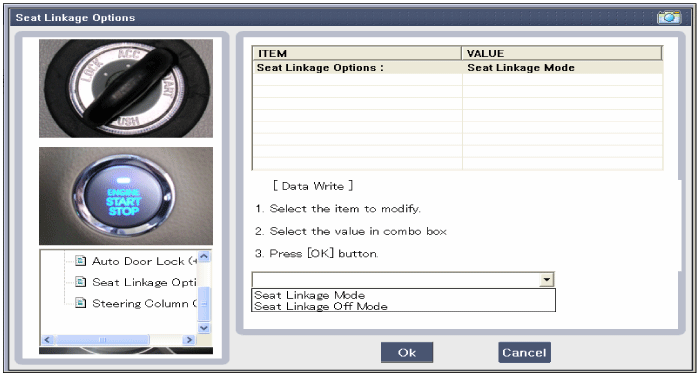

Select the "Tilt steering & seat linkage".
5.
Select the On/Off option of IMS tilt & telescope control.
A.
Seat installation state ON/OFF
B.
Seat riding & getting off gearing ON/OFF
C.
Column installation state ON/OFF
D.
Column riding & getting off gearing ON/OFF
