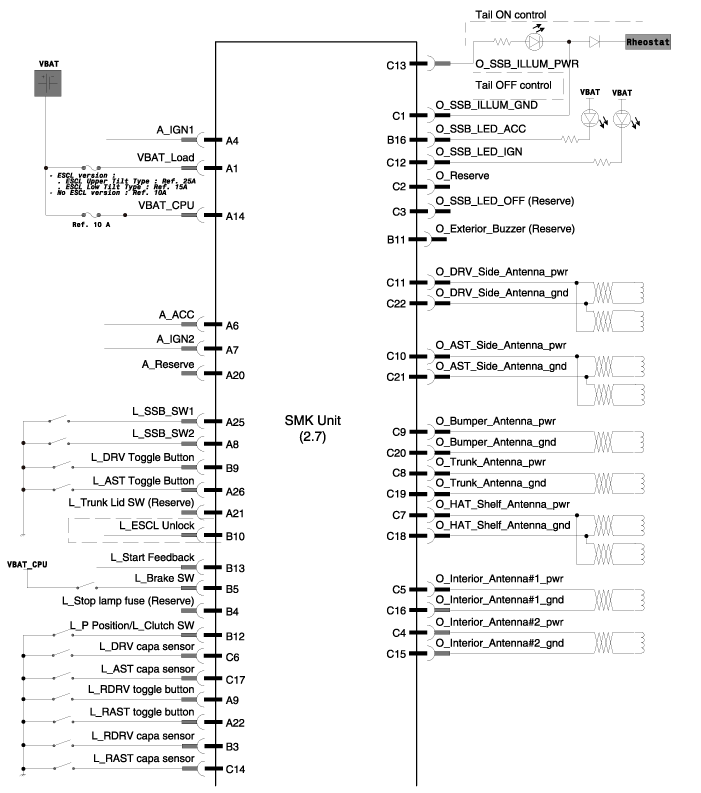

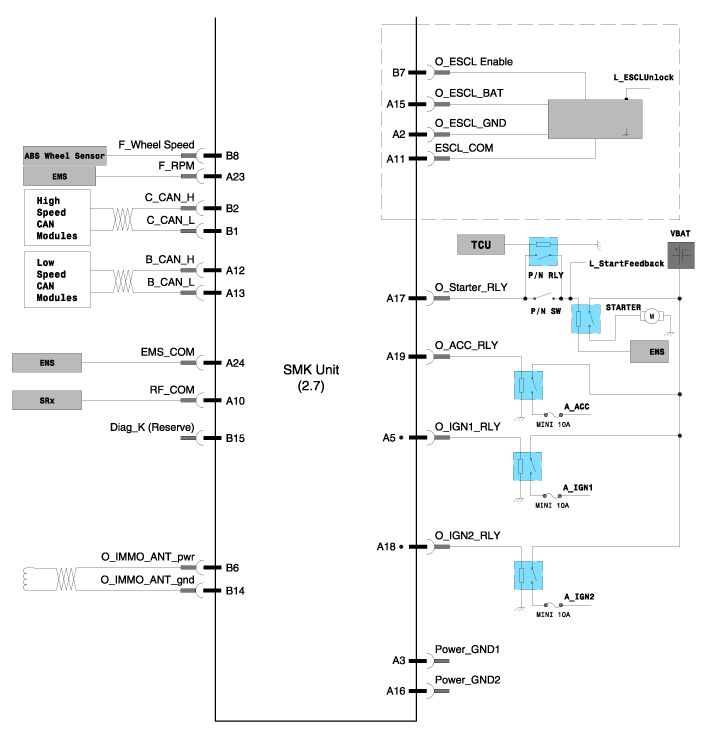

| Circuit Diagram |
Smart Key Unit Components and Components Location
Components
Connector Pin Information
No.Connector AConnector BConnector C1V_BAT loadC_CAN LowSSB illumination ground2-C_CAN High-3Power ground1-SSB LED OFF4IGN1-Interior antenna #2 power5IGN1 rela ...
Smart Key Unit Repair procedures
Removal
Smart Key Unit
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad lower panel after loosening the mounting screws.
(Refer to Body - "Crash Pad Lower Panel")
...
