Hyundai Equus: Climate Seat Unit Schematic Diagrams - Seat Electrical - Body Electrical System - Hyundai Equus VI 2009-2022 Service ManualHyundai Equus: Climate Seat Unit Schematic Diagrams

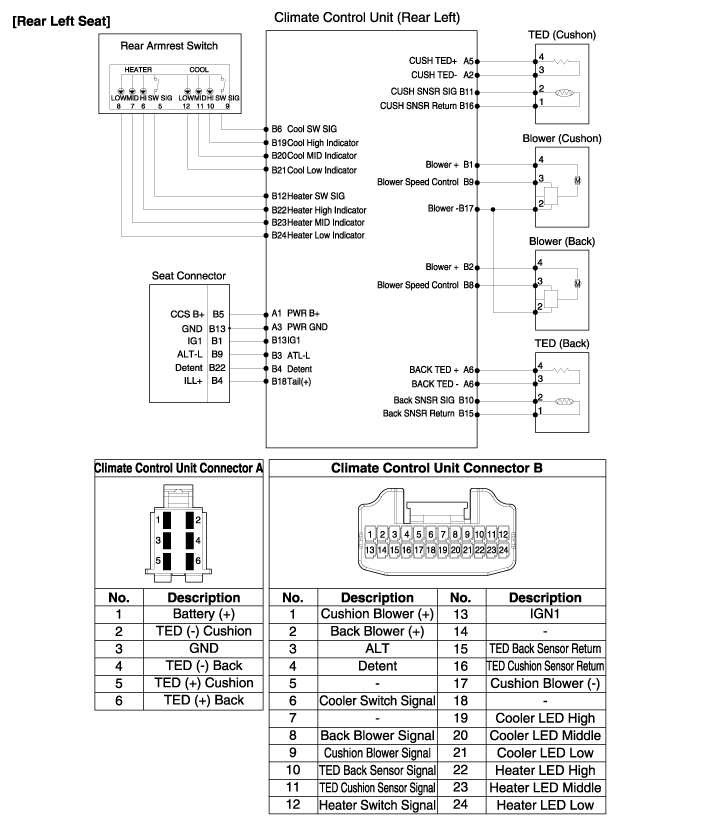

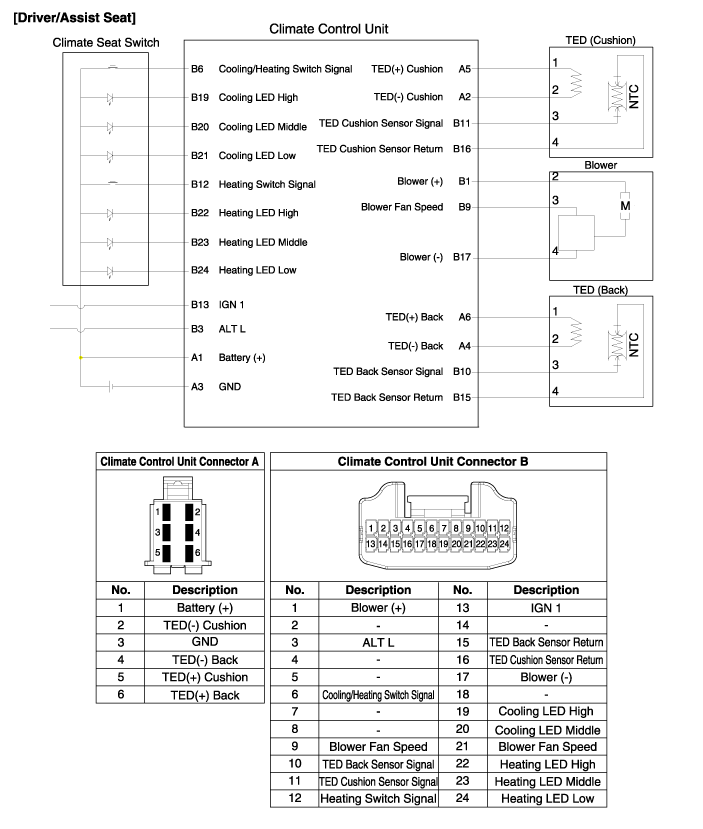

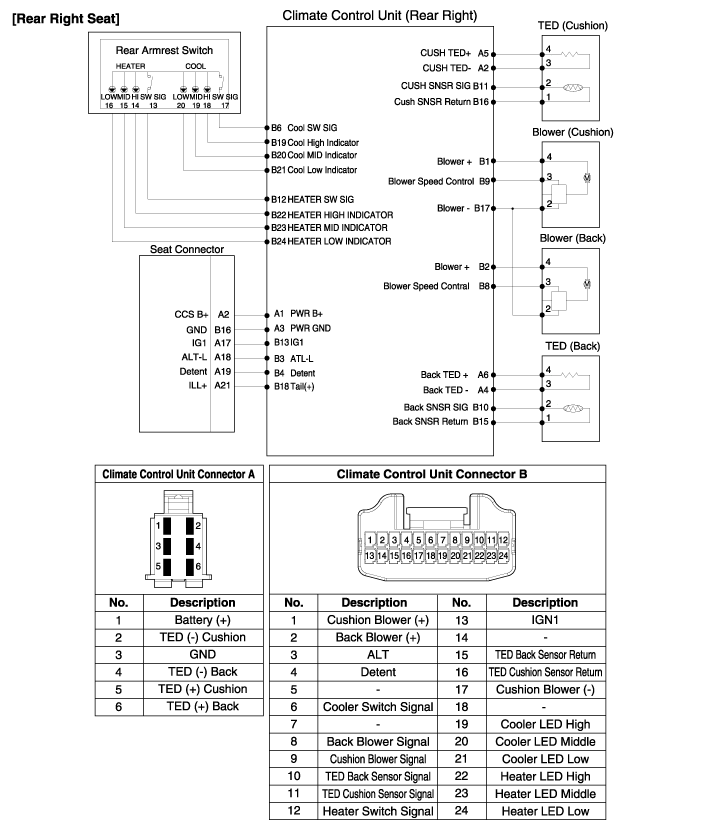

Circuit Diagram

    Climate Seat Unit Components and Components Location
    Components 1. Climate control blower2. Climate control ECU3. Climate control TED4. Climate control blower & TED5. Climate seat ECU (Rear seat) ...

    Climate Seat Unit Description and Operation
    Description Comparing with the seat heat function by the existing thermic rays, Climate Control Seat functions the heating,cooling, dehumidifying by using TED. It inhales the indoor air throug ...
