| Components |

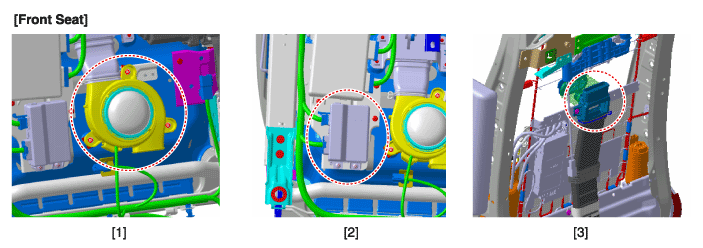

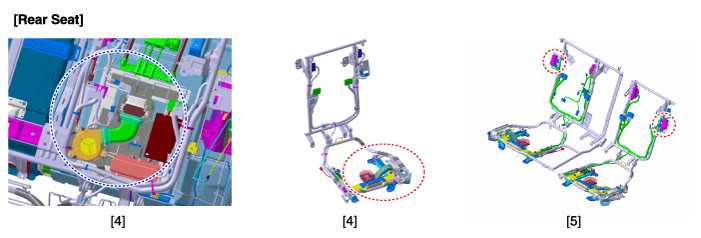

| 1. Climate control blower 2. Climate control ECU 3. Climate control TED | 4. Climate control blower & TED 5. Climate seat ECU (Rear seat) |
Electronic Active Headrest Repair procedures
Inspection
1.
How to reassemble the Headrest which was released by rear (or front) Impact.
2.
How to unlock the trigger in case of trigger is locked.
(1)
Normally, the trigger position is un ...
Climate Seat Unit Schematic Diagrams
Circuit Diagram
...
