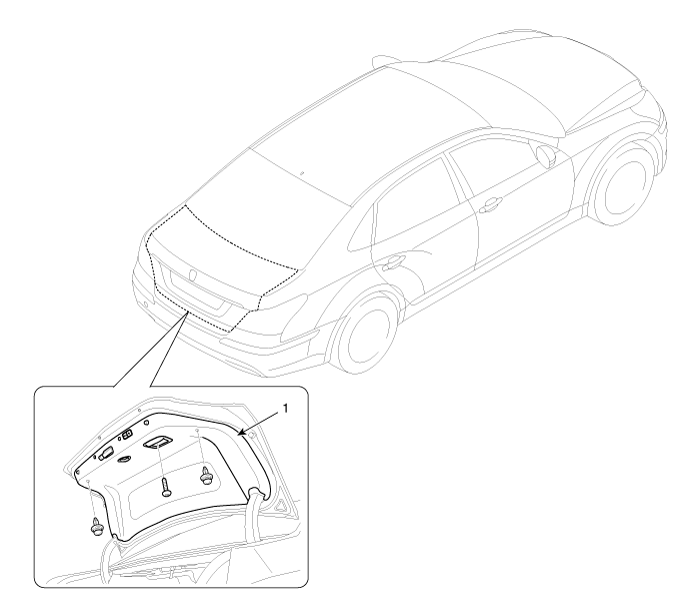

Hyundai Equus: Trunk Lid Trim Components and Components Location

Trunk Lid Assembly Repair procedures

Replacement     • Wear gloves to protect hands from injury.     • When removing and installing the trunk lid, an assistant is necessary. 1. Rem ...

Trunk Lid Trim Repair procedures

Replacement     • Put on gloves to protect your hands.     • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply prote ...
