Replacement

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Take care not to scratch the body surface.
1.
Detach the clips, then remove the trunk lid side cover (A).

2.
Using a screwdriver, remove the trunk lid switch (A), and disconnect the connector.

3.
Detach the clip, then remove the trunk lid cover A).

4.
Remove the trunk lid overslam bumpers (A).
5.

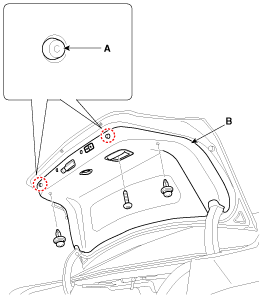

After loosening the mounting screw and clips, then remove the trunk lid trim (B).

6.
Install in the reverse order of removal.

•
Replace any damaged clips.
    Trunk Lid Trim Components and Components Location
    Component Location 1. Trunk lid trim ...

    Trunk Lid Latch Components and Components Location
    Component Location 1. Trunk lid latch ...
