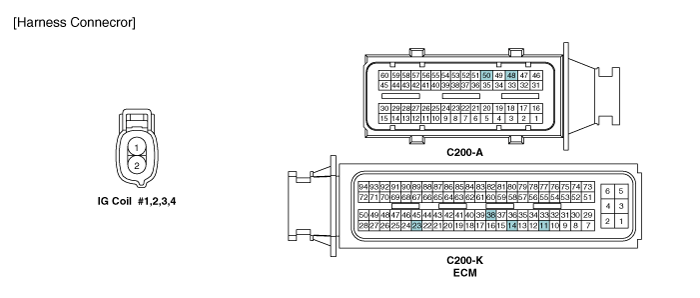

| Circuit Diagram |
Ignition Coil Specifications
Specification
ItemSpecification Primary Coil Resistance (x)0.62 ± 10% [20°C (68°F)]Secondary Coil Resistance (kx)7.0 ± 15% [20°C (68°F)]
...
Ignition Coil Repair procedures
Removal
1.
Disconnect the battery nagative terminal.
2.
Remove the engine cover.
3.
Disconnect the LH/RH ignition coil connectors (A).
4.
Remove the LH/RH ignition coil (A).
&n ...
