| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Using a screwdriver or plastic panel remover, remove the cluster fascia upper panel (A).
|
| 3. |

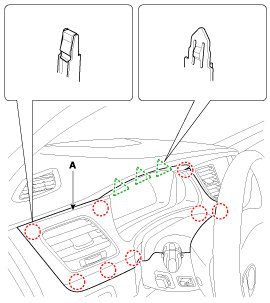

Using a screwdriver or plastic panel remover, remove the center fascia upper panel (A).
|
| 4. |
Disconnect the heater control unit connector (A), clock and SSB connector (B).
|
| 5. |
After loosening the screws, remove the heater control unit (A) from the center fascia upper panel.
|
| Installation |
| 1. |
Install the heater control unit to the center fascia upper panel. |
| 2. |
Install the center fascia upper panel. |
| 3. |
Install the cluster fascia upper panel. |
| Inspection |
| 1. |
Check IPM input/output specification of windshield deicer
switch using the GDS. If the specification is abnormal, replace the
windshield deicer switch module. |
| 2. |

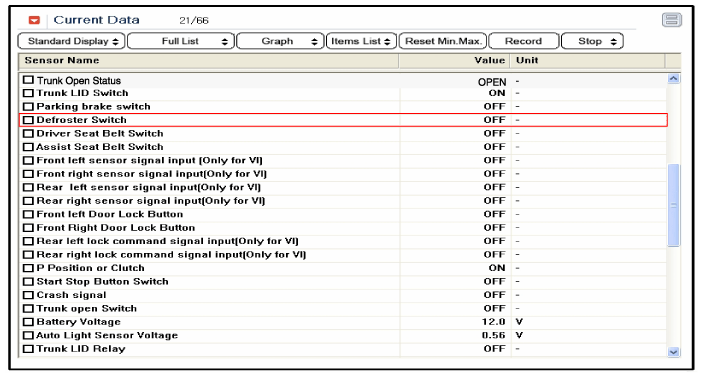

Select option "Input/output monitoring".
|
| 3. |

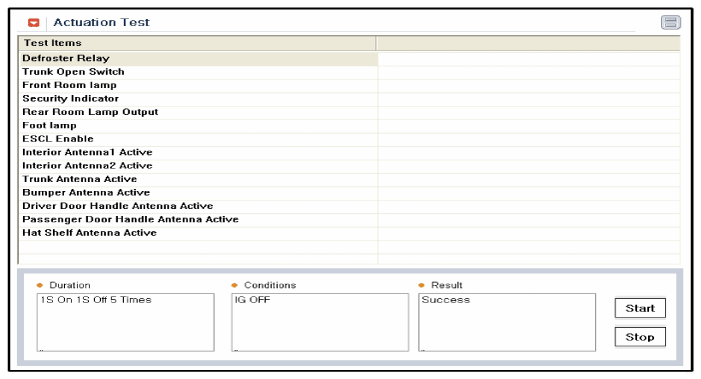

To check the input value of windshield deicer switch in force mode, select option "Actuation test".
|
Windshield Deicer Repair procedures
Inspection
1.
Remove the cowl top cover (A).
(Refer to Body - "Wiper")
2.
Disconnect the windshield deicer connector (A) from the wiper motor linkage.
3.
Check for continuity between the ...
