Hyundai Equus: Thermostat Components and Components Location
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Engine Mechanical System / Cooling System / Thermostat Components and Components Location
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Engine Mechanical System / Cooling System / Thermostat Components and Components Location

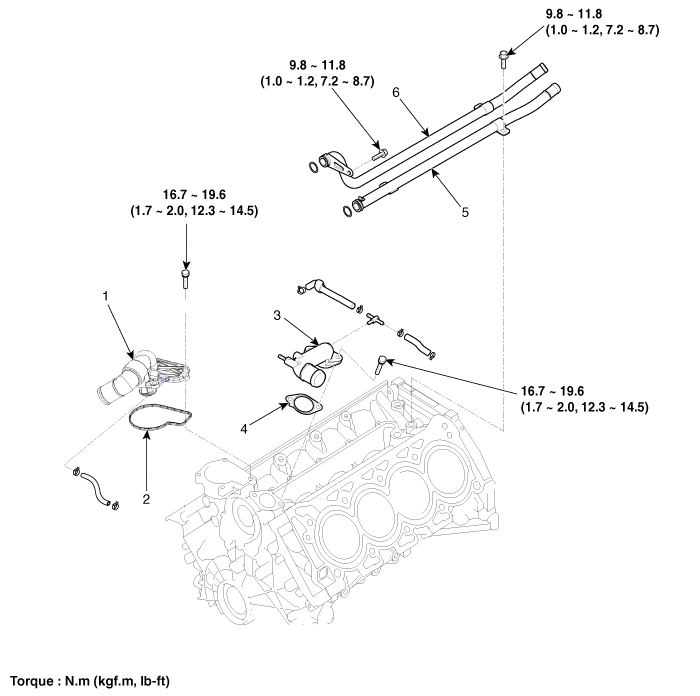

| Components |
| 1. Engine coolant temperature control assembly 2. Engine coolant temperature control assembly gasket 3. Water outlet fitting assembly | 4. Water outlet fitting assembly gasket 5. Water outlet pipe 6. Water inlet pipe |
