| Under body |
| Projected dimensions |
|
|
|
| Tooling hole (O25) | Front sub frame mounting pipe (O25) | Tooling hole (O14) |
|
|
|
| Front sub frame mounting pipe (O27) | Tooling hole (O15) | Tooling & paint drain hole (O6.6) |
|
|
|
| Tooling hole (O25) | Tooling hole (O10) | Parking brake bracket mounting hole (O8) |
|
|
|
| Tooling hole (O13) | Rear sub frame mounting pipe (O28) | Rear suspension spring mounting hole (O20) |
|
| |
| Rear sub frame mounting bolt (O28) | Tooling hole (O11) |

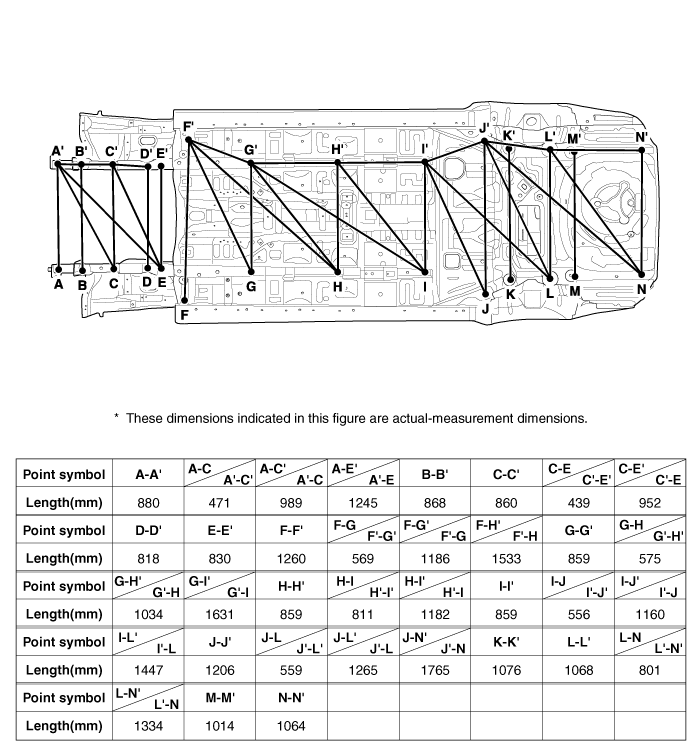

| Actual measurement dimensions |
|
|
|
| Tooling hole (O25) | Front sub frame mounting pipe (O25) | Tooling hole (O14) |
|
|
|
| Front sub frame mounting pipe (O27) | Tooling hole (O15) | Tooling & paint drain hole (O6.6) |
|
|
|
| Tooling hole (O25) | Tooling hole (O10) | Parking brake bracket mounting hole (O8) |
|
|
|
| Tooling hole (O13) | Rear sub frame mounting pipe (O28) | Rear suspension spring mounting hole (O20) |
|
| |
| Rear sub frame mounting bolt (O28) | Tooling hole (O11) |
Limousine Rear Body
Rear body
Roof panel rear cornerSide outer panel rear cornerRear parkage tray panel tooling hole(O23)Side outer panel rear cornerTooling hole (14X10)Tooling hole (O10)
...
