Hyundai Equus: Main Crash Pad Assembly Repair procedures - Crash Pad - Body (Interior and Exterior) - Hyundai Equus VI 2009-2026 Service ManualHyundai Equus: Main Crash Pad Assembly Repair procedures

Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Body (Interior and Exterior) / Crash Pad / Main Crash Pad Assembly Repair procedures

Replacement

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front pillar trim.
(Refer to Interior Trim - "Front Pillar Trim")
2.
Remove the cowl side trim.
(Refer to Interior Trim - "Cowl Side Trim")
3.
Remove the front LCD monitor.
(Refer to Body Electrical System - "Front LCD Monitor")
4.
Remove the AVN head unit.
(Refer to Body Electrical System - "AVN Head Unit")
5.
Remove the instrument cluster.
(Refer to Body Electrical System - "Instrument Cluster")
6.
Remove the crach pad center panel.
(Refer to Crash Pad - "Crach Pad Center Panel")
7.
Remove the steering wheel.
(Refer to Steering System - "Steering Wheel")
8.
Remove the multifunction switch assembly.
(Refer to Body Electrical System - "Multifunction Switch")
9.
Disconnect the head up display (HUD) unit connector (A).

10.

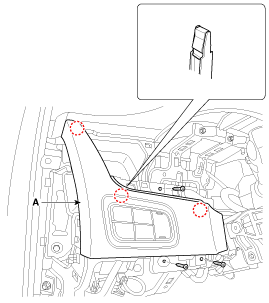

After loosening the mounting screws, then remove the crash pad upper panel [LH] (A).

11.
Disconnect the crash pad upper panel switch connector (A).

12.
After loosening the mounting screws, then remove the cubis unit (A).

13.
Disconnect the cubis unit connectors (A).

14.
Disconnect the photo sensor connector (A).

15.
Disconnect the center speaker connector (A).

16.
Loosen the mounting bolts.
17.
Disconnect the passenger's airbag connectors (A).

18.

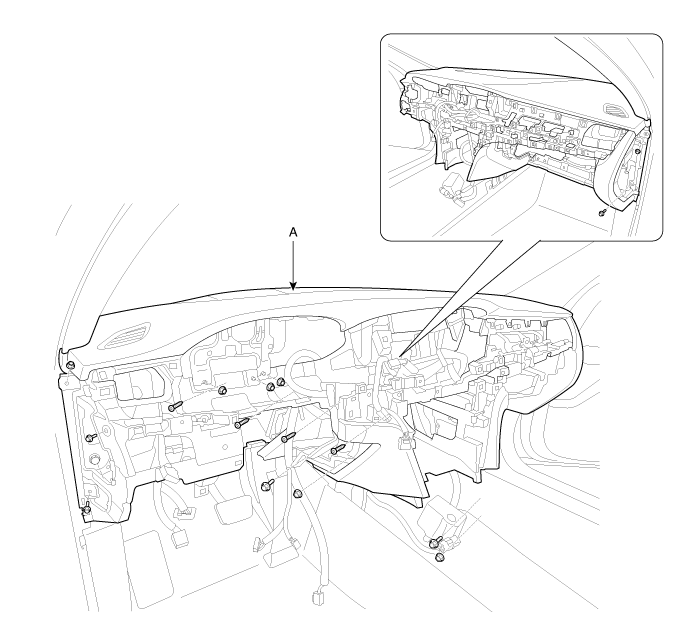

After loosening the mounting bolts and nuts, then remove the main crash pad assembly (A).

19.
Install in the reverse order of removal.

•
Make sure the crash pad fits onto the guide pins correctly.
•
Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
•
Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
•
Enter the anti- theft code for the radio, then enter the customer`s radio station presets.
