| Components |

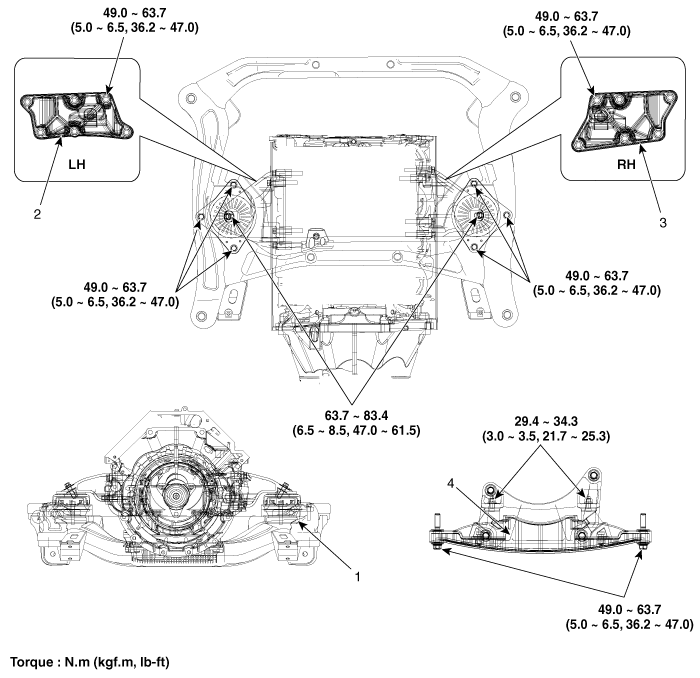

| 1. Engine mounting insulator 2. Engine support bracket LH | 3. Engine support bracket RH 4. Transmission mounting insulator |
Engine And Transmission Assembly Repair procedures
Removal
•
Use fender covers to avoid damaging painted surfaces.
•
To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
...
