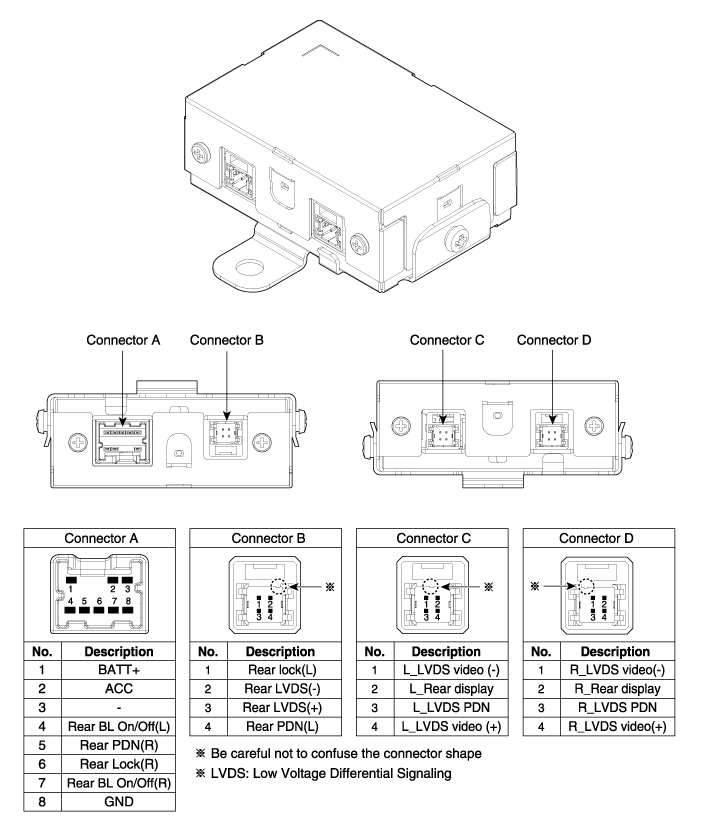

Hyundai Equus: Spliter Unit Components and Components Location

AUX jack Repair procedures

Removal 1. Remove the floor console upper tray. (Refer to Body - "Floor Console Assembly") 2. Remove the center fascia lower tray. (Refer to Body - "Center fascia pannel") 3. Remove the ...

Spliter Unit Description and Operation

Description The spliter unit receive the LVDS signal from AVN head unit and send it to left/right rear monitor. (LVDS : Low Voltage Differential Signaling ) ...
