Hyundai Equus: Power Trunk Module Drive Unit Schematic Diagrams - Power Trunk Module - Body Electrical System - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Power Trunk Module Drive Unit Schematic Diagrams

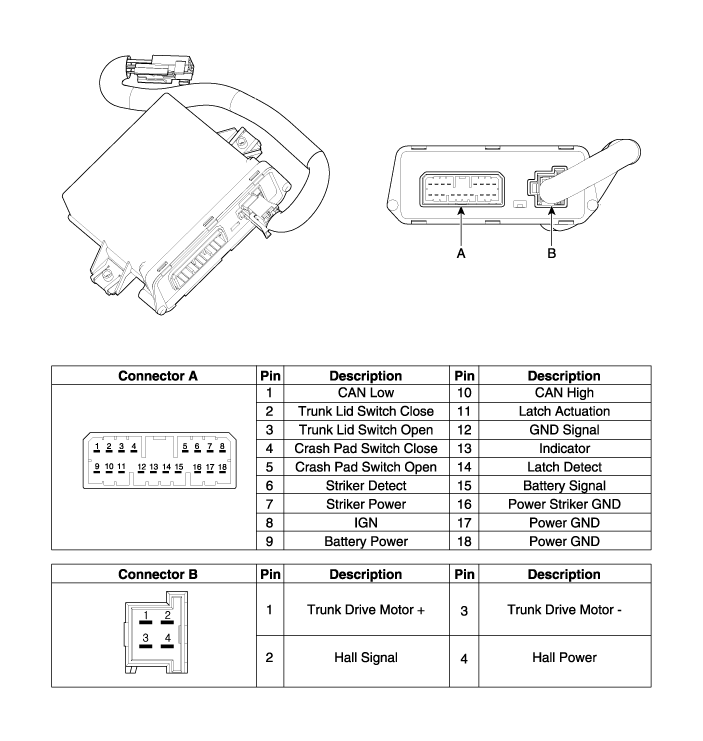

Circuit Diagram

    Power Trunk Module Drive Unit Components and Components Location
    Component Location 1. Gear motor2. Drive bracket3. Push rod4. Gear5. Drive arm6. Power trunk module control unit7. Push rod pin ...

    Power Trunk Module Drive Unit Repair procedures
    Removal     Х When removing and installing the trunk lid, an assistant is necessary. Х Take care not to be closed the trunk when removing the push rod. Х Wear glove ...
