Hyundai Equus: Limousine Side Body
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Body (Interior and Exterior) / Body Dimensions / Limousine Side Body
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Body (Interior and Exterior) / Body Dimensions / Limousine Side Body

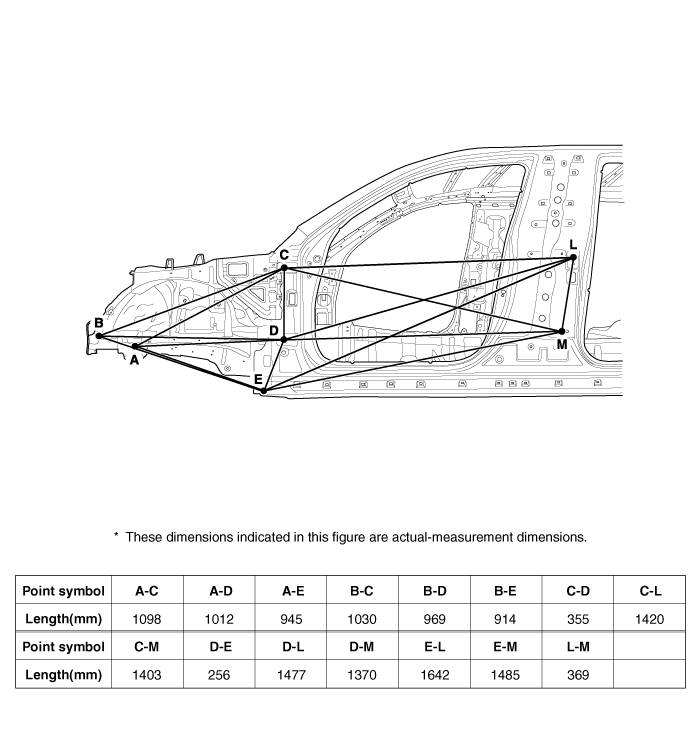

| Side body A |
|
|
|
| Front side member tooling hole (O8) | Fender apron panel tooling hole (O7) | Front door hinge upper mounting hole (O13) |
|
|
|
| Front door hinge lower mounting hole (O13) | Fender mounting hole (O6.6) | Rear door hinge upper mounting hole (O13) |
| ||
| Rear door hinge lower mounting hole (O13) |

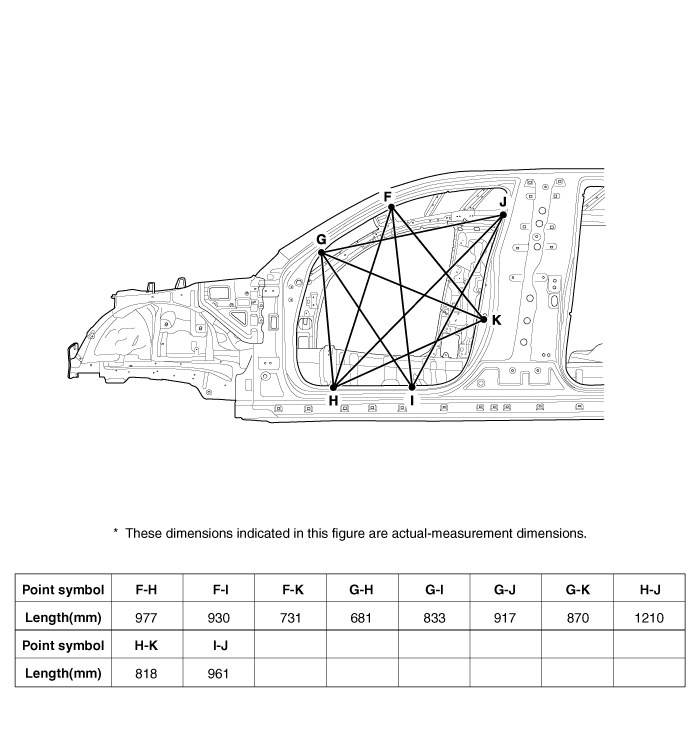

| Side body B |
|
|
|
| Side outer panel notch | Side outer panel notch | Side outer panel notch |
|
|
|
| Side outer panel notch | Side outer panel notch | Front door switch mounting hole (O10) |

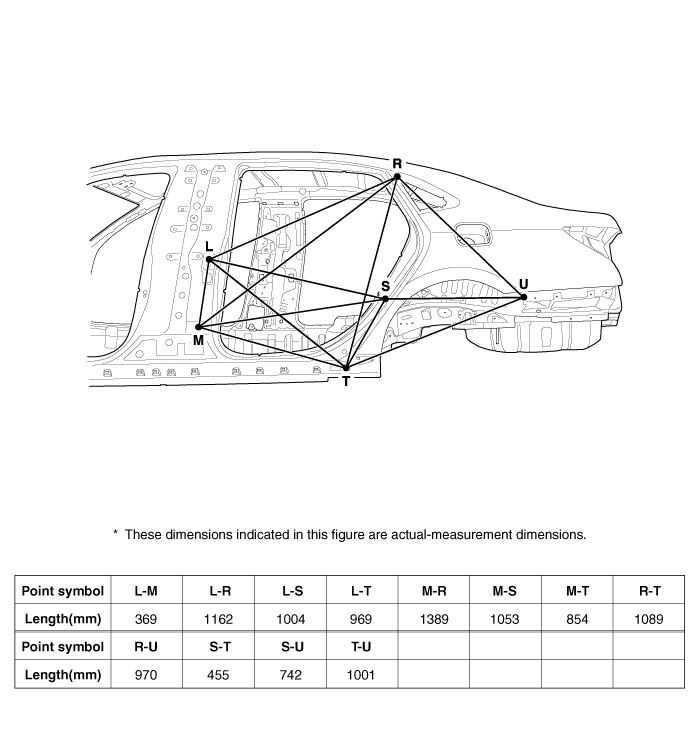

| Side body C |
|
|
|
| Rear door hinge upper mounting hole (O13) | Rear door hinge lower mounting hole (O13) | Quarter fixed glass mounting hole (O8) |
|
|
|
| Rear door switch mounting hole (O8) | Side sill moulding mounting hole (10X10) | Rear bumper mounting hole (O11) |

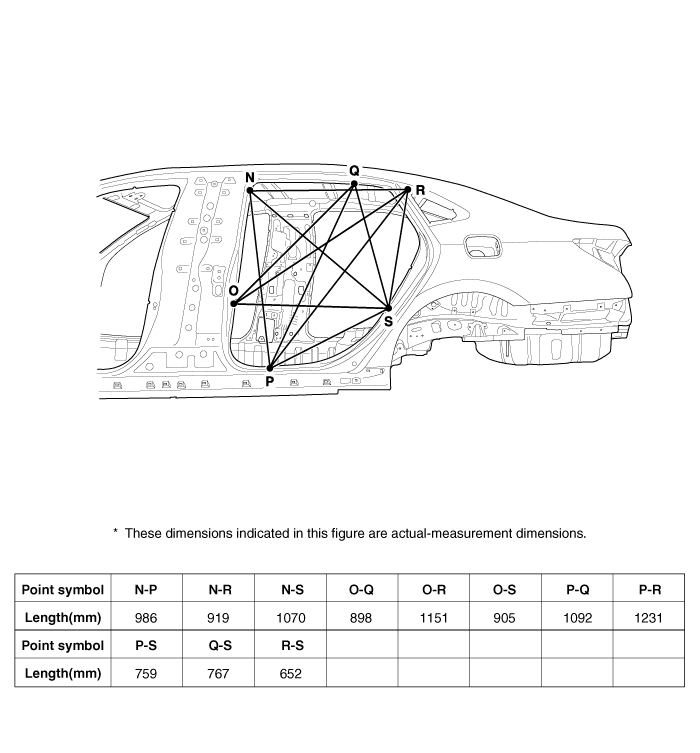

| Side body D |
|
|
|
| Side outer panel notch | Side outer panel notch | Side outer panel notch |
|
|
|
| Side outer panel notch | Quarter fixed glass mounting hole (O8) | Rear door switch mounting hole (O8) |
