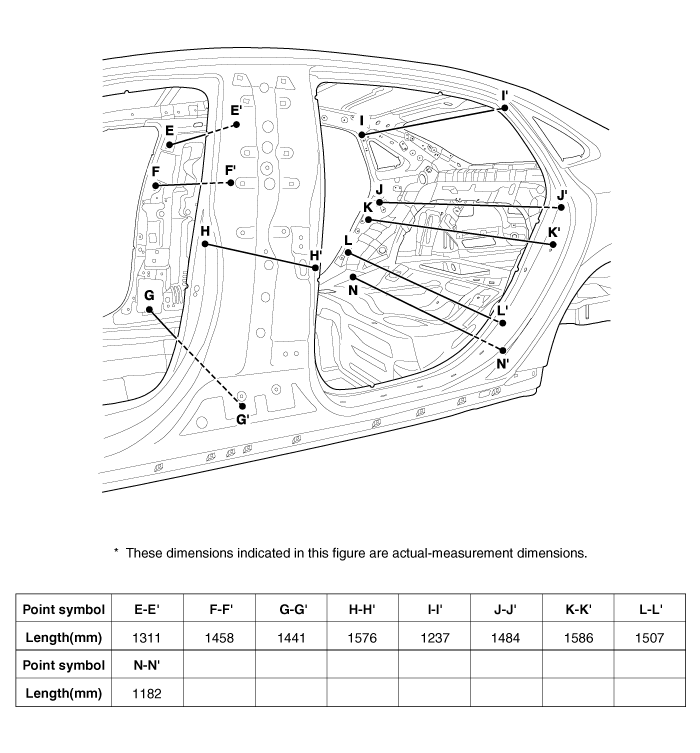

| Interior A |
|
|
|
| Front inner pillar tooling hole (O9) | Cowl cross bar mounting hole (O11) | Front door checker mounting hole (O11) |
|
|
|
| Side sill inner reinforcement tooling hole (O7) | Seat belt height adjuster upper mounting hole (O15) | Seat belt height adjuster lower mounting hole (O15) |
|
| |
| Seat belt pretensioner mounting hole (O12) | Rear door checker mounting hole (O11) |

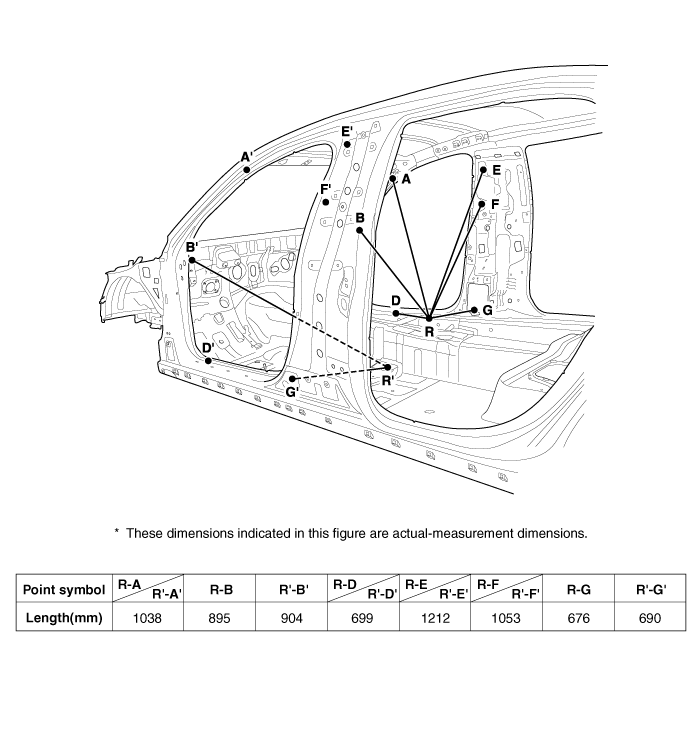

| Interior B |
|
|
|
| Front inner pillar tooling hole (O9) | Cowl cross bar mounting hole (O11) | Side sill inner reinforcement tooling hole (O7) |
|
|
|
| Seat belt height adjuster upper mounting hole (O15) | Seat belt height adjuster lower mounting hole (O15) | Seat belt pretensioner mounting hole (O12) |
| ||
| Front seat cross member tooling hole (O10) |

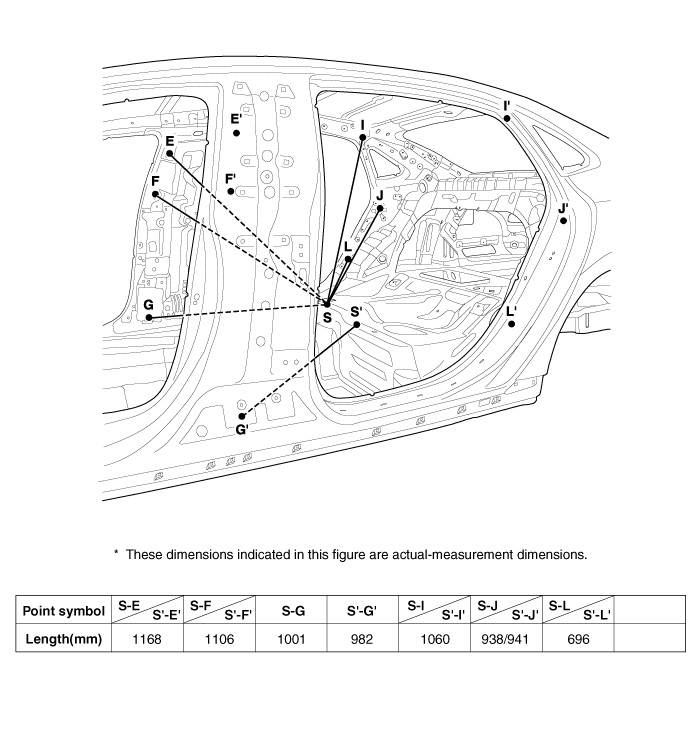

| Interior C |
|
|
|
| Seat belt height adjuster upper mounting hole (O15) | Seat belt height adjuster lower mounting hole (O15) | Seat belt pretensioner mounting hole (O12) |
|
|
|
| Rear door checker mounting hole (O11) | Quarter inner panel tooling hole (O9) | Quarter inner panel tooling hole (O6.6) |
|
|
|
| Rear door striker mounting hole (O12.8) | Quarter inner panel tooling hole (O12) | Floor panel tooling hole (O16) |
| Interior D |
|
|
|
| Seat belt height adjuster upper mounting hole (O15) | Seat belt height adjuster lower mounting hole (O15) | Seat belt pretensioner mounting hole (O12) |
|
|
|
| Quarter inner panel tooling hole (O9) | Quarter inner panel tooling hole (O6.6) | Quarter inner panel tooling hole (O12) |
| ||
| Floor panel tooling hole (O9) |

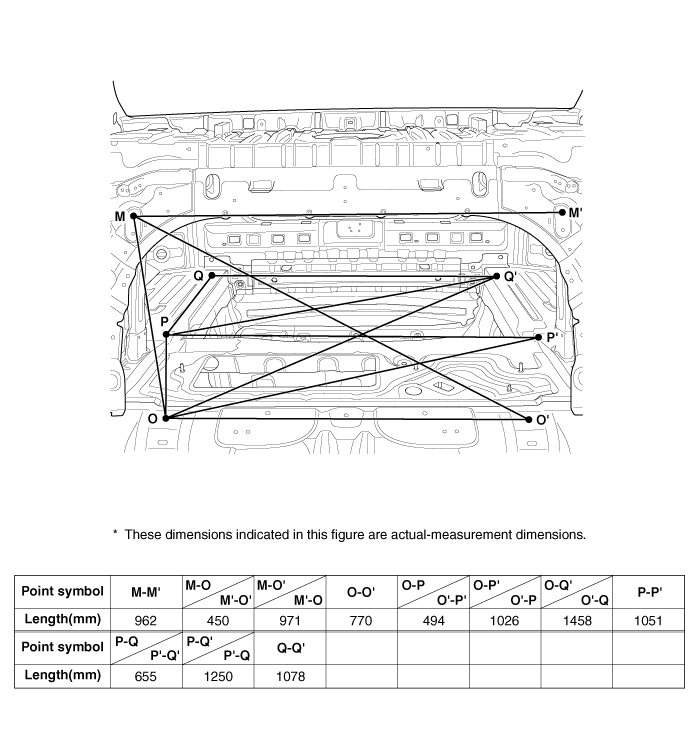

| Interior E |
|
|
|
| Rear package tray panel tooling hole (O9) | Floor panel tooling hole (O9) | Floor panel tooling hole (O6.6) |
| ||
| Spare tire well tooling hole (O6.6) |
Limousine Side Body
Side body A
Front side member tooling hole (O8)Fender apron panel tooling hole (O7)Front door hinge upper mounting hole (O13)Front door hinge lower mounting hole (O13) Fender mounting hole (O6.6 ...
Limousine Rear Body
Rear body
Roof panel rear cornerSide outer panel rear cornerRear parkage tray panel tooling hole(O23)Side outer panel rear cornerTooling hole (14X10)Tooling hole (O10)
...
