| Front body A |
|
|
|
| Roof panel front corner | Front pillar outer corner | Hood hinge mounting hole (O13) |
|
|
|
| Shockabsorber mounting hole (O24) | Front end module mounting hole (O9) | Cowl top cover mounting hole (O7) |

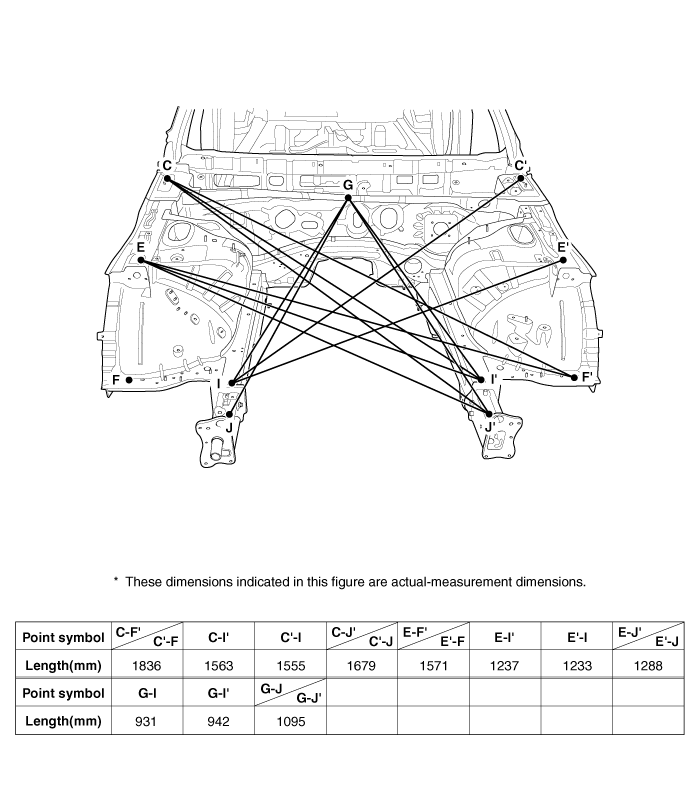

| Front body B |
|
|
|
| Hood hinge mounting hole (O13) | Front end module mounting hole (O9) | Fender apron panel tooling hole (O7) |
|
|
|
| Cowl top cover mounting hole (O7) | Front side member tooling hole (O8) | Front side member tooling hole (O11) |
|
| |
| Wiring harness mounting hole (12X16) | Wiring harness mounting hole (12X16) |

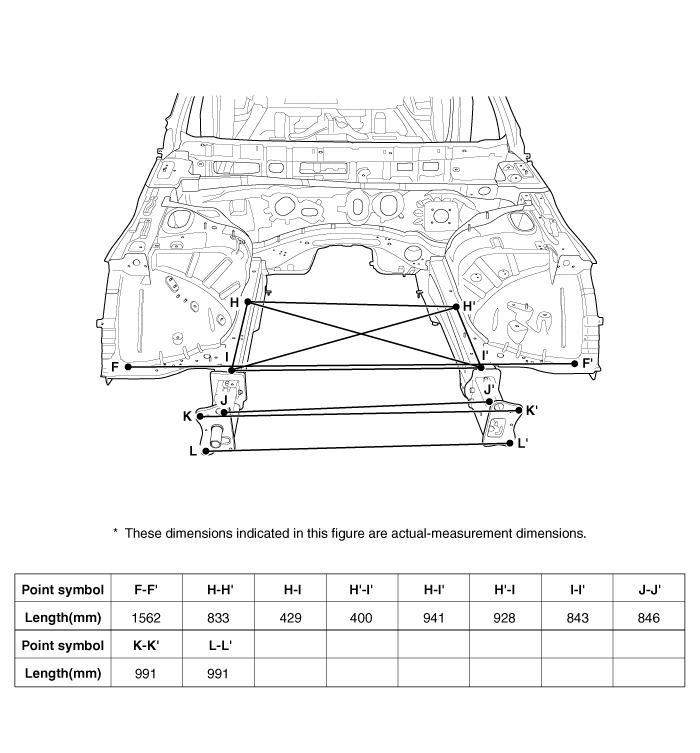

| Front body C |
|
|
|
| Fender apron panel tooling hole (O7) | Front side member tooling hole (8X8) | Front side member tooling hole (O7) |
|
|
|
| Front side member tooling hole (O8) | Front side member tooling hole (O11) | Wiring harness mounting hole (12X16) |
|
|
|
| Wiring harness mounting hole (12X16) | Front crash member bracket tooling hole (O9) | Front crash member bracket tooling hole (O9) |
