Hyundai Equus: High mounted stop light - Light bulbs - Maintenance - Hyundai Equus 2009-2022 Owners ManualHyundai Equus: High mounted stop light

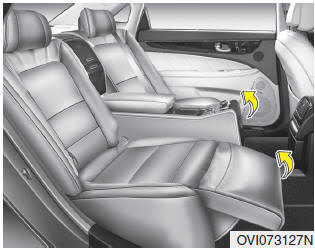

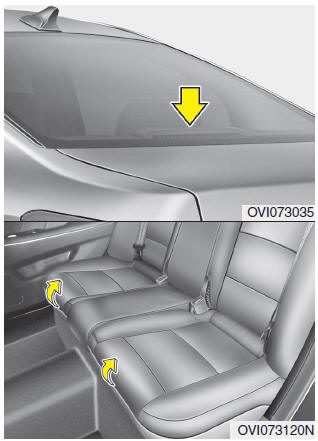

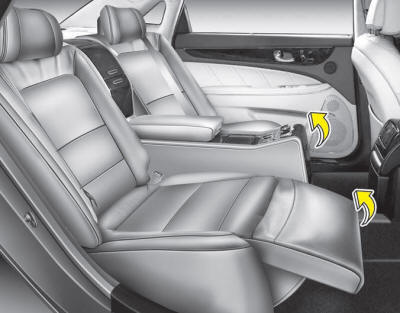

1. Remove the rear seat

5 Seater


5 Seater

1.Disconnect the negative battery cable.
2.Remove the rear seat cushion.

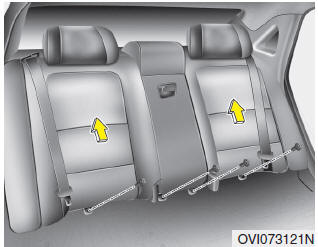

3.Loosen the mounting bolts, then remove the rear seat back.


3.Loosen the mounting bolts, then remove the rear seat back.

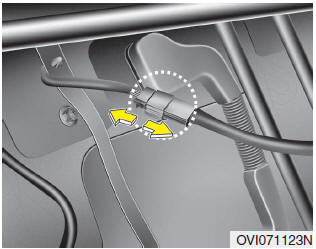

4.Disconnect the connector.


4.Disconnect the connector.

5.Push the hook, disconnect the main connector.


5.Push the hook, disconnect the main connector.

Tightening torque :

34.3~53.9 N.m
3.5~5.5 kgf.m,
25.3~39.8 lb-ft

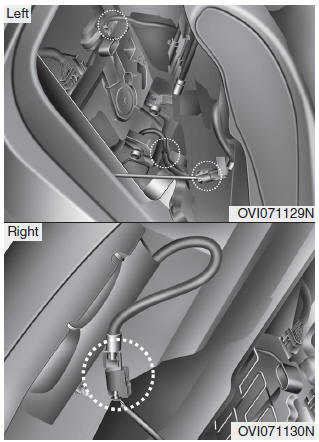

6.Loosen the mounting bolts, then disconnect the connector.


6.Loosen the mounting bolts, then disconnect the connector.
7.Remove the side seat.

4 Seater


4 Seater

1.Disconnect the negative battery cable.
2.Remove the rear seat cushion.

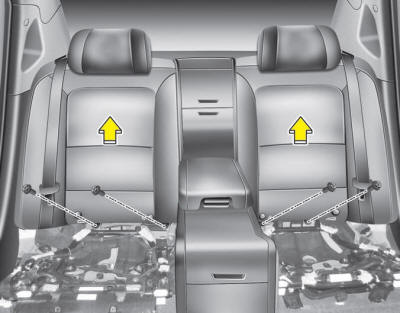

3.Loosen the mounting bolts, then remove the rear seat back.


3.Loosen the mounting bolts, then remove the rear seat back.

Tightening torque :

34.3~53.9 N.m
3.5~5.5 kgf.m,
25.3~39.8 lb-ft

4.Disconnect the connectors and hose.


4.Disconnect the connectors and hose.

2. Remove the rear package tray trim

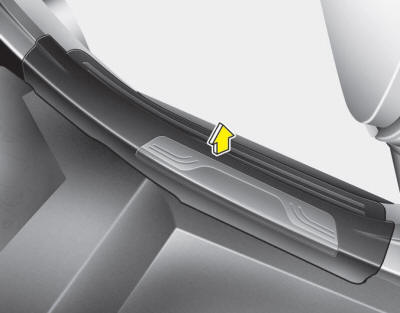

1.Remove the rear door scuff trim.


1.Remove the rear door scuff trim.

2.Loosen the mounting screw, then remove the rear wheel house trim.


2.Loosen the mounting screw, then remove the rear wheel house trim.

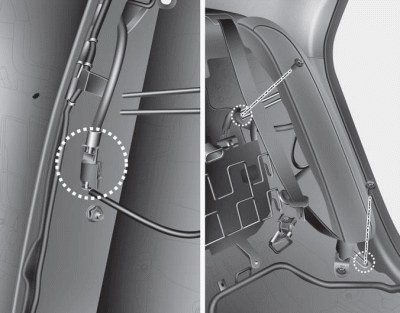

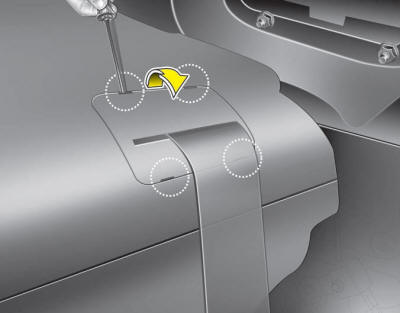

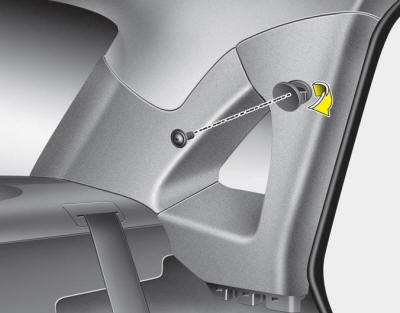

3.Remove the cap, then loosen the mounting screw.


3.Remove the cap, then loosen the mounting screw.

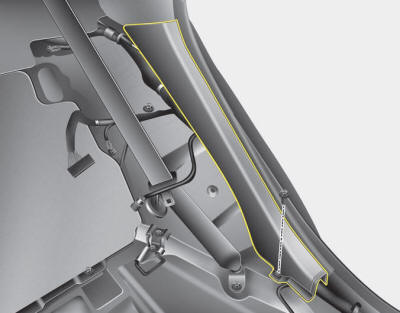

4.Remove the rear pillar trim.

5.Push the hook, remove the rear seat belt cover.


5.Push the hook, remove the rear seat belt cover.

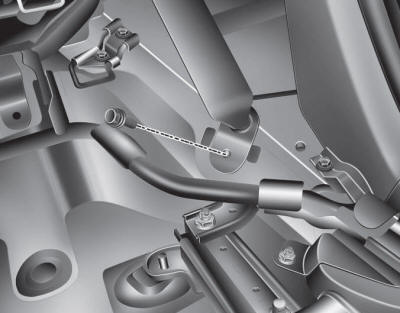

6.Remove the rear seat belt lower anchor.


6.Remove the rear seat belt lower anchor.

Tightening torque :  39.2~53.9 N.m
4.0~5.5 kgf.m
28.9~39.8 lb-ft

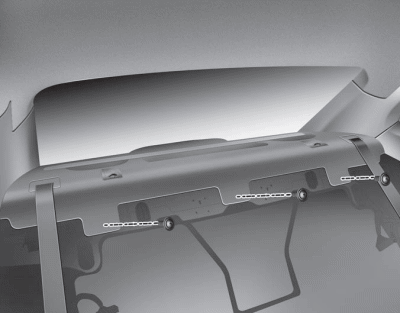

7.Loosen the mounting screws, then remove the package tray trim.


7.Loosen the mounting screws, then remove the package tray trim.

3. Replace the high mounted stop light

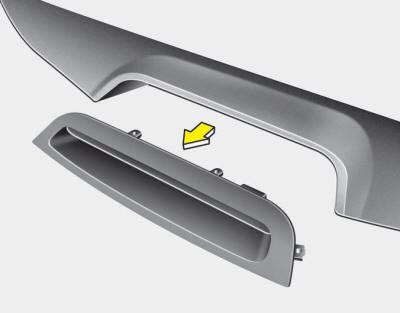

1.Remove the high mounted stop lamp after removing screws.


1.Remove the high mounted stop lamp after removing screws.
2.Install a new light.

4. Installation

Install in the reverse order of removal.
