Hyundai Equus: License plate lamp replacement - Light bulbs - Maintenance - Hyundai Equus 2009-2022 Owners ManualHyundai Equus: License plate lamp replacement

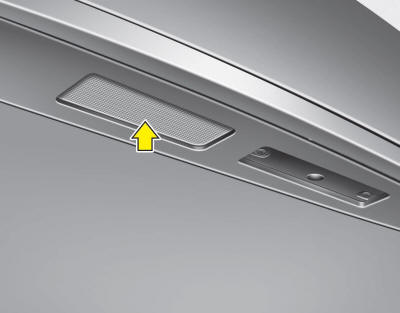

1.Open the trunk.


1.Open the trunk.
2.Disconnect the negative battery cable.

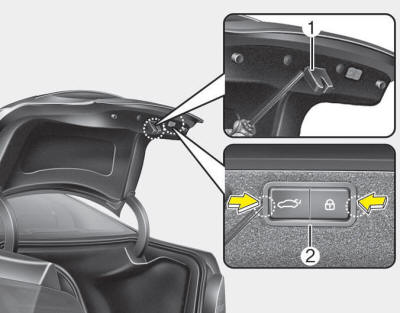

3.Using a screwdriver, remove the trunk lid latch cover(1).


3.Using a screwdriver, remove the trunk lid latch cover(1).

4.Using a screwdriver, remove the trunk lid switch(2), and disconnect the connector.

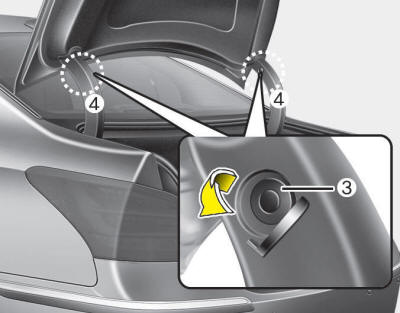

5.Detach the clip and fastener(3), then remove the trunk lid cover(4).


5.Detach the clip and fastener(3), then remove the trunk lid cover(4).

6.Remove the clips and screws.


6.Remove the clips and screws.

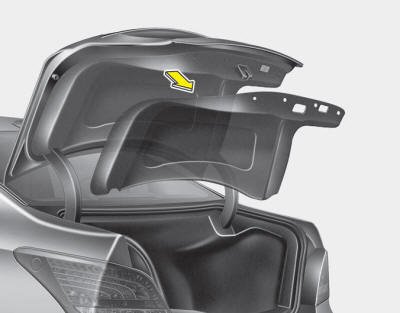

7.Remove the trunk lid trim.


7.Remove the trunk lid trim.

CAUTION

Be careful not to damage to the fasteners between the trunk lid trim and trunk lid.

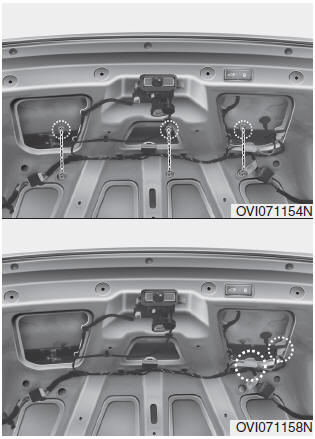

8.Remove the nuts and disconnect the connectors.


8.Remove the nuts and disconnect the connectors.

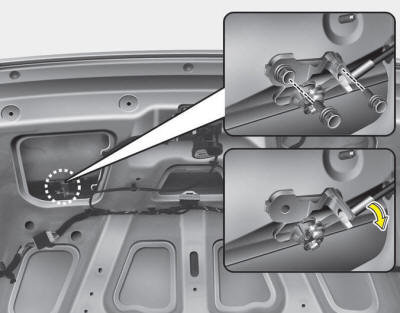

9. Remove the bolts and remove the trunk key hold.


9. Remove the bolts and remove the trunk key hold.

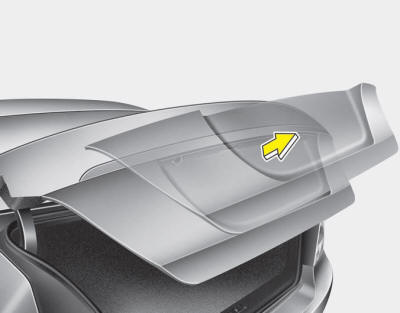

10. Remove the trunk lid panel.


10. Remove the trunk lid panel.

CAUTION

Be careful not to damage to the fasteners between the trunk lid panel and trunk lid.

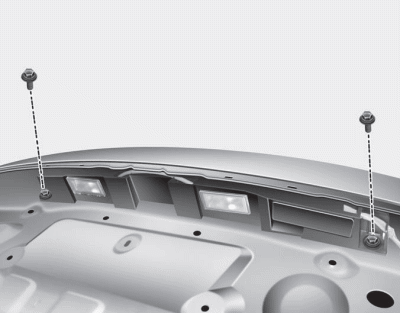

11. Remove the bolts and remove the license plate lamp.


11. Remove the bolts and remove the license plate lamp.
12. Install a new light.
13. Installation is the reverse of removal.
