Hyundai Equus: Interior light bulb replacement
Second generation VI (2009–2025) / Hyundai Equus 2009-2025 Owners Manual / Maintenance / Light bulbs / Interior light bulb replacement

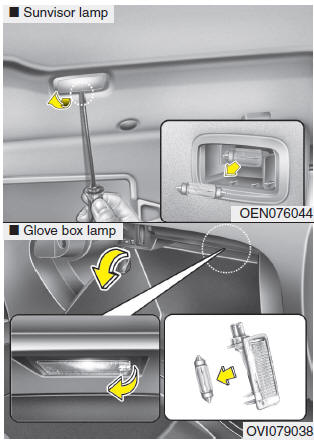

1. Using a flat-blade screwdriver, gently pry the lens from the interior light housing.
2. Remove the bulb by pulling it straight out.
WARNING
Prior to working on the Interior Lights, ensure that the “OFF” button is depressed to avoid burning your fingers or receiving an electric shock.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior light housing notches and snap the lens
into place.
5. If the map lamp and room lamp are not operating, have the vehicle checked by
an authorized EQUUS dealer.
CAUTION
Use care not to dirty or damage lens, lens tab, and plastic housings.
✽ NOTICE
If the luggage lamp does not operate, have the vehicle checked by an authorized EQUUS dealer.
