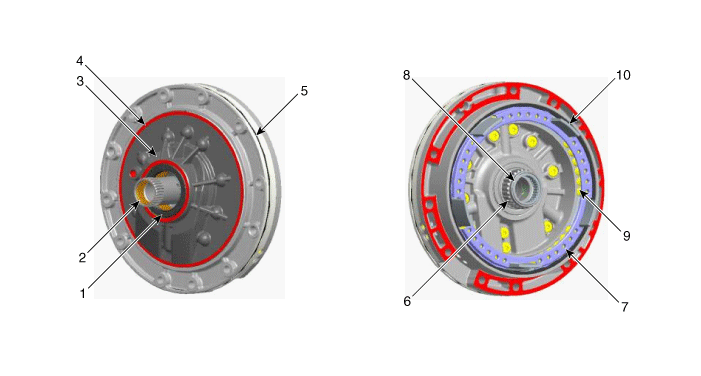

| Components Location |
| 1. Oil seal 2. Reaction shaft 3. Housing 4. Cover 5. O-Ring | 6. Reaction shaft 7. Snap ring 8. Needle bearing 9. 8LR/B return spring 10. 8LR/B piston |
Oil Pump Description and Operation
Description
The oil pump rotation builds the hydraulic pressure needed
for the lubrication of the various parts of the automatice transmission
and operation of the clutch and brakes.
The oil ...
Fluid Components and Components Location
Components Location
1. Oil injection hole2. Oil level check plug3. Oil drain piug
...
