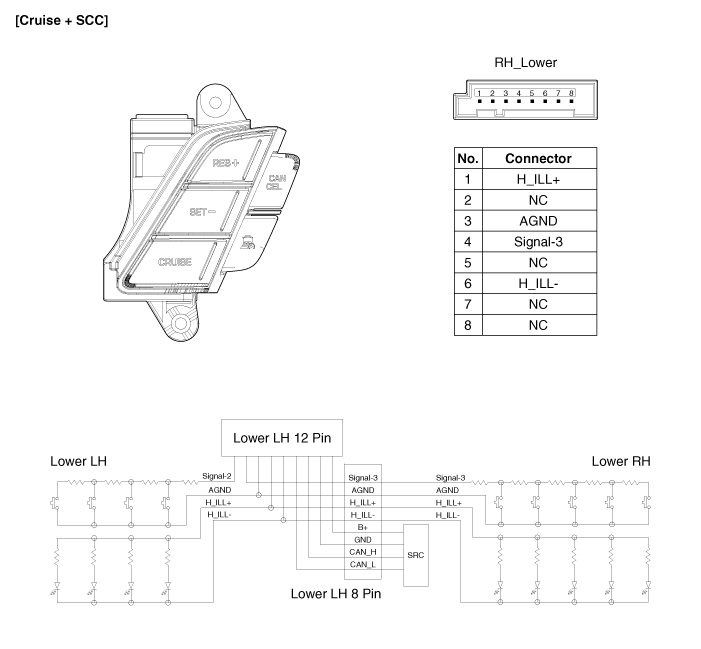

Hyundai Equus: Smart Cruise Control Switch Schematic Diagrams

Smart Cruise Control Switch Components and Components Location

Components 1. SET - switch2. RES + switch3. SCC switch4. CANCEL switch5. CRUISE switch ...

Smart Cruise Control Switch Repair procedures

Inspection [Measuring Resistance] 1. Disconnect the cruise control switch connector from the control switch. 2. Measure resistance between terminals on the control switch when each function ...
