Hyundai Equus: Smart Cruise Control Switch Repair procedures - Smart Cruise Control System - Engine Electrical System - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Smart Cruise Control Switch Repair procedures

Inspection

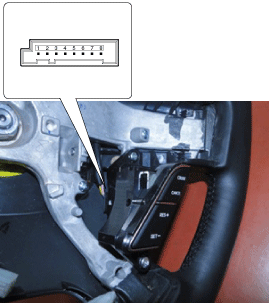

[Measuring Resistance]
1.
Disconnect the cruise control switch connector from the control switch.

2.
Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
Function switch
Terminal
Resistance (kx)
SET -
5 - 6
0.24
RES +
5 - 6
0.51
SCC
5 - 6
0.94
CANCEL
5 - 6
1.69
CRUISE
5 - 6
3.29

3.
If not within specification, replace switch.
[Measuring Voltage]
1.
Connect the cruise control switch connector to the control switch.

2.
Measure voltage between terminals on the harness side connector when each function switch is ON (switch is depressed).
Function switch
Terminal
Voltage (V)
SET -
5 - 6
0.95
RES +
5 - 6
1.68
SCC
5 - 6
2.44
CANCEL
5 - 6
3.10
CRUISE
5 - 6
3.80

3.
If not within specification, inspect the control switch resistance.
The measuring resistance value is not within specification, replace the switch and measure the voltage again.
4.
If resistance is OK but, measuring voltage is not within specification, inspect the wiring harness and connectors between the switch and the ECM.
Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the air-bag module from the steering wheel.
(Refer to Restraint - "Driver Airbag (DAB) Module and Clock Spring")
3.
Remove the bejel (A) after loosening the screw.

4.
Remove the cruise control switch mounting screws (A).
5.
Disconnect the under cruise control switch (B).

6.
Remove the cruise control switch (A).

Installation
1.
Install in the reverse order of removal.
    Smart Cruise Control Switch Schematic Diagrams
    Circuit Diagram ...
