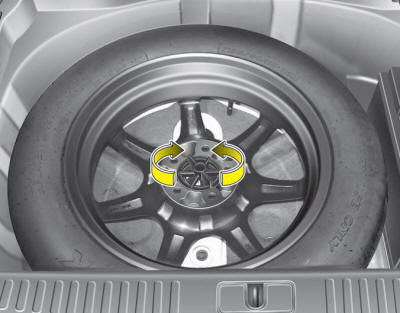

Turn the tire hold-down wing bolt counterclockwise.
Store the tire in the reverse order of removal.
To prevent the spare tire and tools from “rattling” while the vehicle is in motion, store them properly.
If it is hard to loosen the tire holddown wing bolt by a hand, you can loosen it easily using the Jack handle.

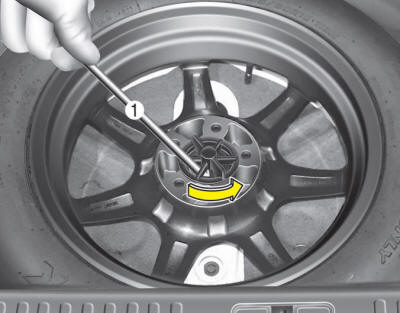

1. Put the Jack handle (1) into the inside of tire hold-down wing bolt.
2. Turn the tire hold-down wing bolt counterclockwise by the Jack handle to utilize
the principles of the lever and fulcrum.
CAUTION
When you remove or store the spare tire, do not contact or bump the battery with the spare tire. Contacting or bumping the battery may cause failure of electrical circuits.
Jack and tools
The jack, jack handle, and wheel lug nut wrench are stored in the luggage compartment.
Pull up the luggage box cover to reach this equipment.
(1) Jack handle
(2) Jack
(3) Wheel lug nut wrench
...
Changing tires
1.Park on a level surface and apply the parking brake firmly.
2.Shift the shift lever into P (Park).
3.Activate the hazard warning flasher.
4.Remove the wheel lug nut wrench, jack, jack han ...
