Hyundai Equus: Power Steering Motor Components and Components Location - Electro Hydraulic Power Steering - Steering System - Hyundai Equus VI 2009-2025 Service ManualHyundai Equus: Power Steering Motor Components and Components Location

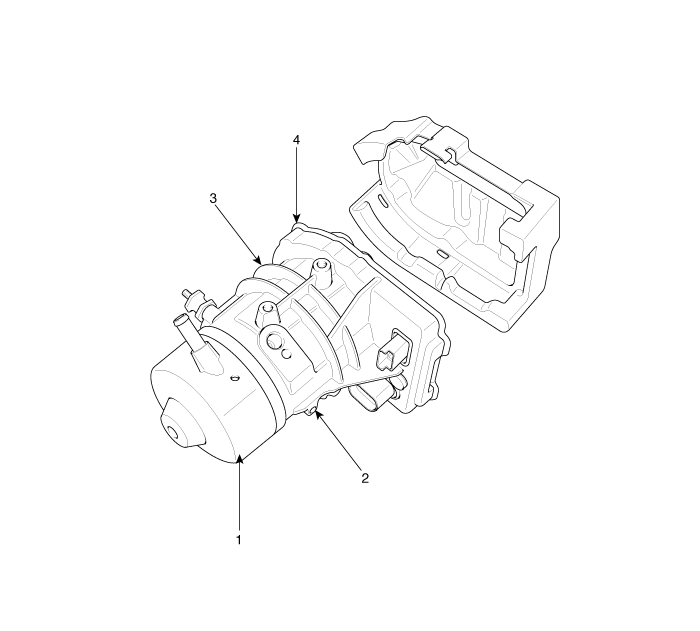

Components

1. Oil reservoir
2. Gear pump
3. Motor
4. ECU
