Hyundai Equus: Engine compartmen
Second generation VI (2009–2025) / Hyundai Equus 2009-2025 Owners Manual / Your vehicle at a glance / Engine compartmen

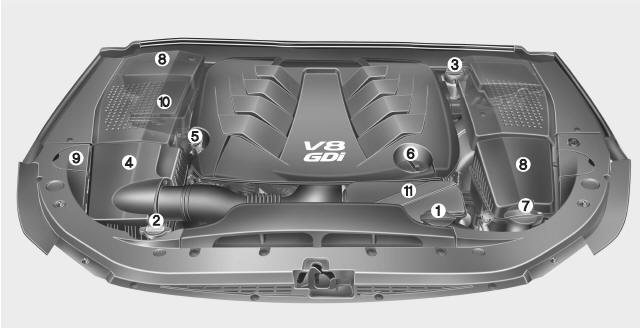

1. Engine coolant reservoir
2. Radiator cap
3. Brake fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windshield washer fluid reservoir
8. Fuse box
9. Power steering fluid reservoir
10. Jump start connector
11. Chamber air cleaner
