Hyundai Equus: Instrument panel overview
Second generation VI (2009–2025) / Hyundai Equus 2009-2025 Owners Manual / Your vehicle at a glance / Instrument panel overview

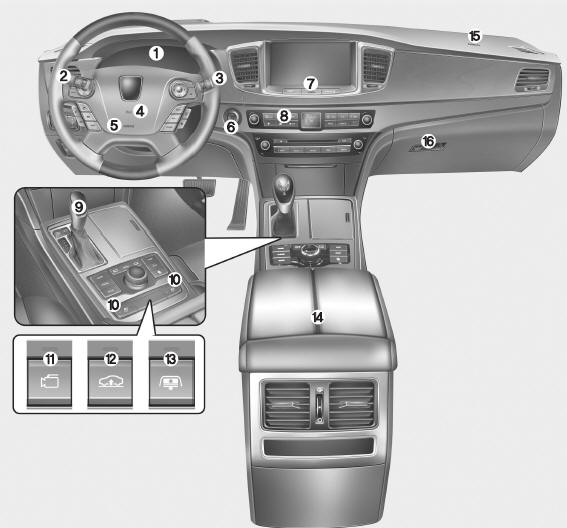

1. Instrument cluster
2. Lighting control lever
3. Wiper and washer control lever
4. Horn
5. Driver’s front air bag
6. Engine Start/Stop Button
7. Hazard warning flasher
8. Climate control system
9. Shift lever
10. Climate control system seat
11. Around view monitoring system on/off button
12. Vehicle height control button
13. Rear curtain folding button
14. Center console storage box
15. Passenger’s front air bag
16. Glove box
Interior overview
1. Inside door handle
2. Driver’s seat control
3. Driver position memory system button
4. Power window switch
5. Outside rearview mirror control
6. Fuel-filler lid opener
7. BSD (Blind spot ...
Engine compartmen
1. Engine coolant reservoir
2. Radiator cap
3. Brake fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windshield washer fluid reservoir
8. Fuse box
9. ...
