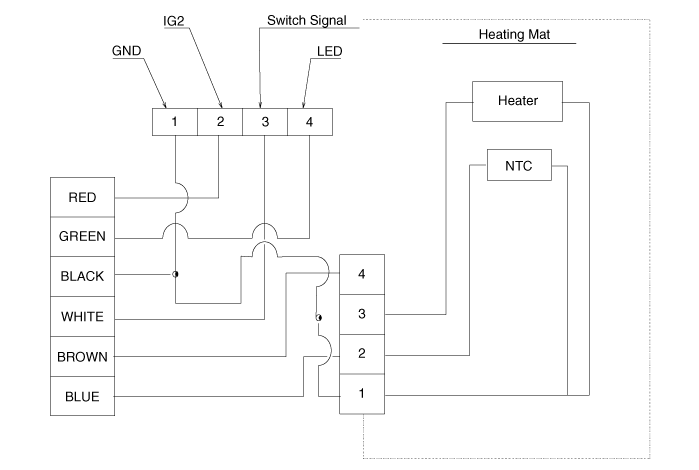

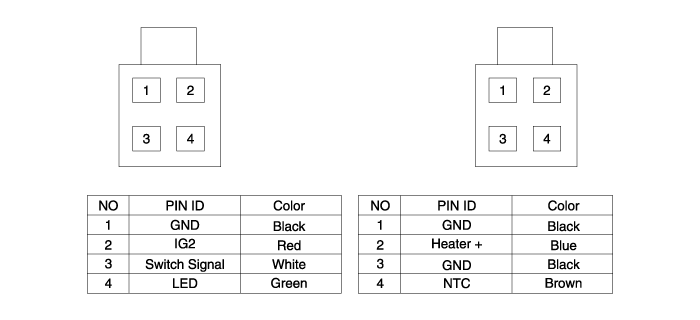

| Full Circuit Diagram |
Heated Steering wheel Components and Components Location
Components Location
1. heated steering switch
...
Heated Steering wheel Repair procedures
Inspection
1.
Measure a resistance of NTC and Heated pad.
A.
NTC resistance(Black / Yellow, Black) - 10.0 kx ± 10% (25°C)
B.
Heated pad resistance (Yellow, Black) - 1.6 ~ 2.0 x ± 10%
...
