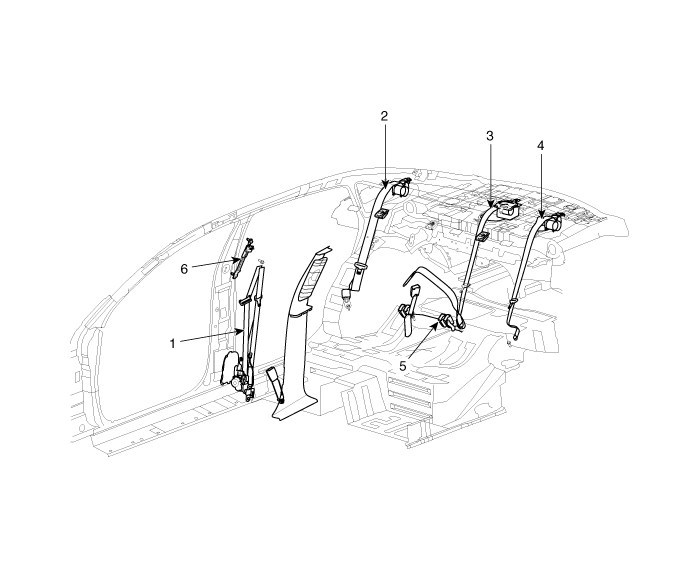

| Components |
| 1. Front seat belt 2. Rear seat belt [RH] 3. Rear center seat belt | 4. Rear center seat belt [RH] 5. Rear seat belt buckle 6. Height adjuster |
Front Seat Belt
...
Front Seat Belt Pretensioner Components and Components Location
Component Location
1. Front seat belt pretensioner
...
