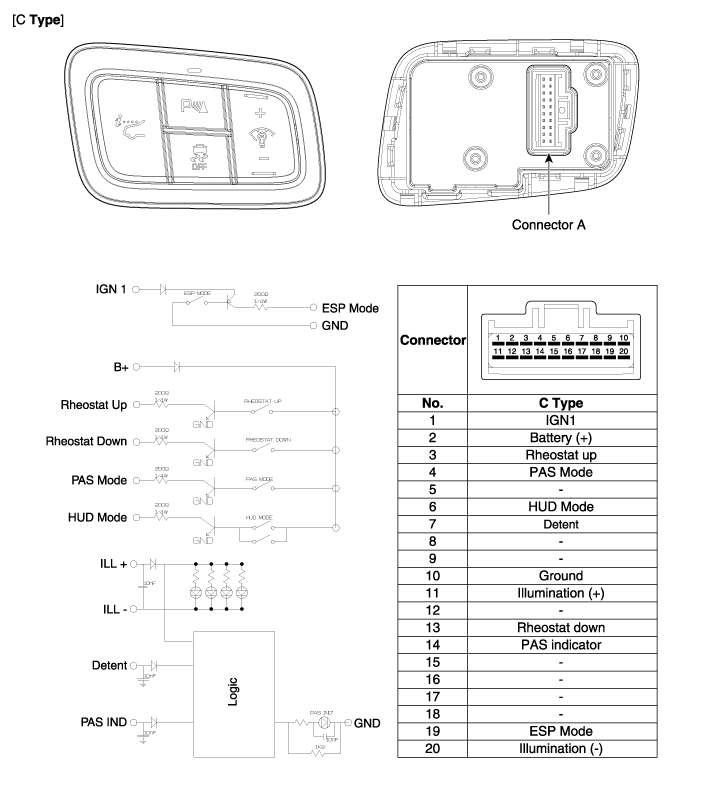

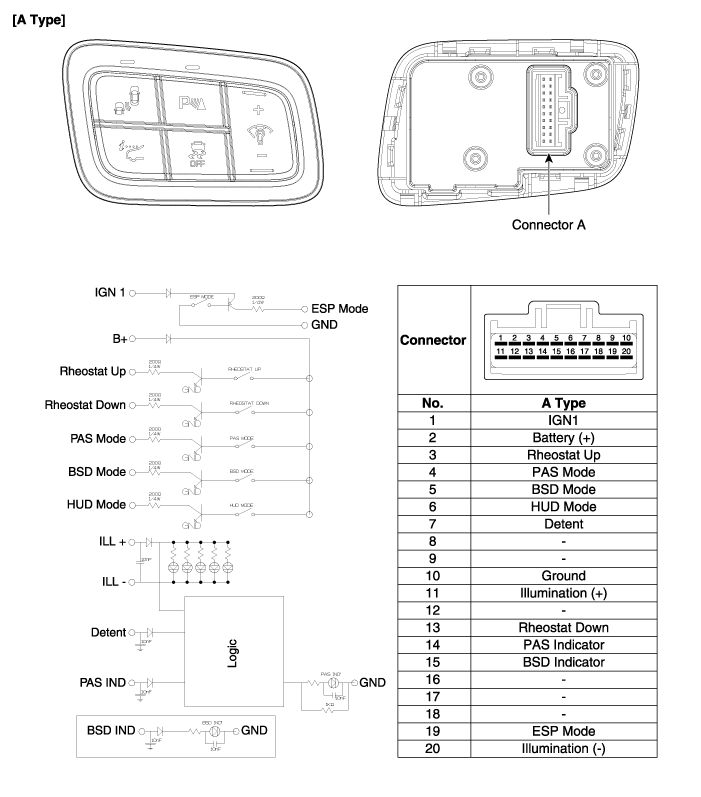

Hyundai Equus: Head Up Display Switch Components and Components Location

Head Up Display Unit Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the head up display bezel (A). 3. Remove the instrument cluster. (Refer to Indicators And Guages - "Instrument Cluster") ...

Head Up Display Switch Repair procedures

Removal 1. Disconnect the negative (-) battery. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 3. Remove the crash pad lower panel and then push the head u ...
