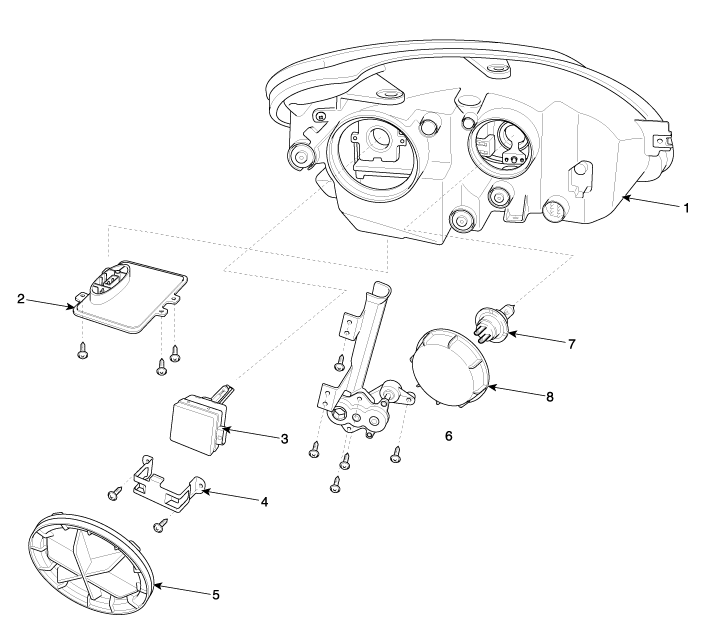

| Components |
| 1. Head lamp assembly lens & housing 2. Ballast 3. Head lamp (Low) bulb (HID) & Ignitor 4. Bracket | 5. Dust cover (Low) 6. Vertical adjustment (High/Low) 7. Head lamp (High) bulb 8. Dust cover (High) |
Components and Components Location
Component Location
1. Head lamp (High) 2. Head lamp (Low)3. Front fog lamp4. Front turn signal lamp5. Door mirror lamp6. High mounting stop lamp7. Tail/stop lamp8. Rear turn signal lamp9. Back up ...
Head Lamps Description and Operation
HID Head Lamp
1.
Bulb
(1)
Elements
Xenon gas: Xenon gas activates the initial reaction for rapid illuminating.
Molybdenum electrode: anode arcing
Metal halide salts: color composing component ...
