| Component Location |

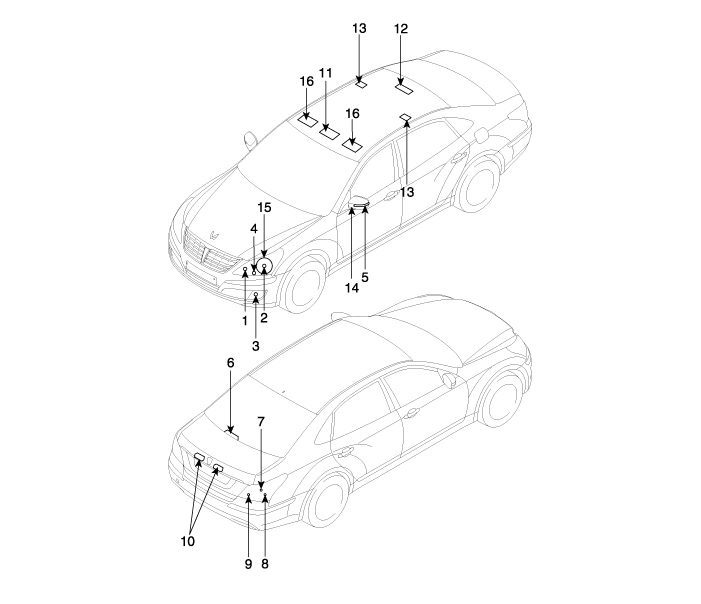

| 1. Head lamp (High) 2. Head lamp (Low) 3. Front fog lamp 4. Front turn signal lamp 5. Door mirror lamp 6. High mounting stop lamp 7. Tail/stop lamp 8. Rear turn signal lamp | 9. Back up lamp 10. License plate lamp 11. Overhead console lamp 12. Rear room lamp 13. Vanity lamp (Rear) 14. Puddle lamp 15. Position lamp 16. Vanity lamp (Front) |
Specifications
Specification
ItemsBulb Wattage (W)FrontHead lamp (High)55Head lamp (Low)35 (HID) or LEDFront turn signal lampLEDFront fog lampLEDPosition lampLEDDoor mirrorLEDRearRear stop/tail lamp (Outside) L ...
Head Lamps Components and Components Location
Components
1. Head lamp assembly lens & housing2. Ballast3. Head lamp (Low) bulb (HID) & Ignitor4. Bracket5. Dust cover (Low)6. Vertical adjustment (High/Low)7. Head lamp (High) bulb8. Du ...
