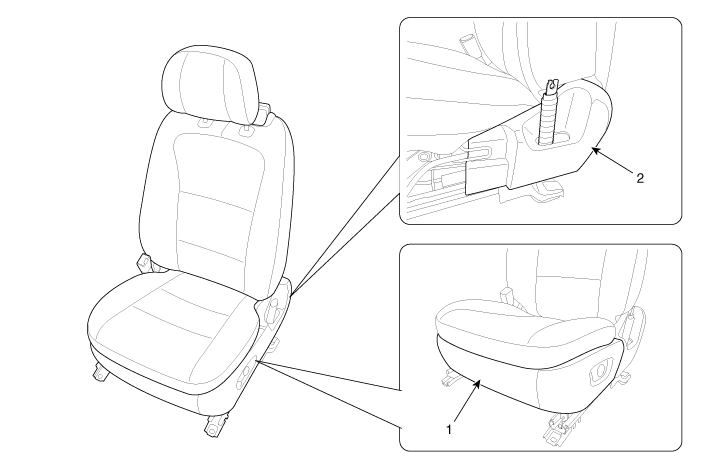

Component Location

1. Front seat front shield outer cover
2. Front seat rear shield outer cover

    Front Seat Assembly Repair procedures
    Replacement 1. Remove the safety belt (A) by turning it in the direction of arrow using a flat-head screwdriver. 2. Remove the front seat track mounting cover. 3. After loosening the mount ...

    Front Seat Shield Outer Cover Repair procedures
    Replacement [Front Seat Front Shield Outer Cover]     Х Put on gloves to protect your hands.     Х When prying with a flat-tip screwdriver, wrap it ...
