Hyundai Equus: Front - Interior light - Features of your vehicle - Hyundai Equus 2009-2024 Owners ManualHyundai Equus: Front

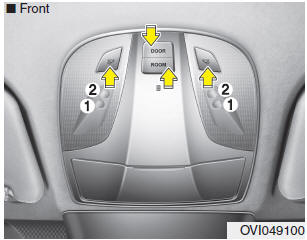

(1) Front map lamp


(1) Front map lamp
(2) Front room lamp

  • Х to turn the map lamp on. This light produces a spot beam for convenient use: Press the button
    to turn the map lamp on. This light produces a spot beam for convenient use as a map lamp at night or as a personal lamp for the driver and the front passenger. To turn the lamp off, press the button again.
  • Х DOOR : The front and rear room lamps come on for approximately 30 seconds when doors are unlocked with the smart key as long as the doors are not opened. When the Engine Start/ Stop Button is in the ACC or OFF position, if any door is opened, the front or rear room lamp will stay on for approximately 20 minutes. If the door is closed, the lamps will go out in 30 seconds. The front and rear room lamps will go out immediately if the Engine Start/ Stop Button is changed to the ON position with all doors closed. When the Engine Start/Stop Button is in the ON position, if any door is opened, the front or rear room lamp will stay on continuously. If the door is closed, the lamp will go out immediately.
  • ROOM : Pressing the button, turns the front and rear room lamps on. To turn the lamps off, press the ROOM button again.
    Interior light
    CAUTION Do not use the interior lights for extended periods when the engine is not running. It may cause battery discharge. WARNING Do not use the interior lights when driving in the dark. Accide ...

    Rear
    (1) Rear map lamp (2) Rear room lamp : Press the button to turn the rear lamp on. To turn the lamp off, press the button again. Х ROOM : Pressing the button, turns the rear room lamps on.T ...
