Inspection
1.
Check the condenser fins for clogging and damage. If clogged, clean them with water, and blow them with compressed air. If bent, gently bend them using a screwdriver or pliers.
2.
Check the condenser connections for leakage, and repair or replace it, if required.
Replacement
1.
Recover the refrigerant with a recovery/recycling/charging station.
2.
Disconnect the negative (-) battery terminal.
3.
Remove the nuts, and then disconnect the discharge line (A) and liquid line (B) from the condenser.

Tightening torque :
3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)
4.
Remove the radiator assembly.
(Refer to Engine Mechanical System - "Radiator")
5.

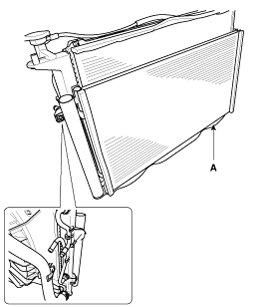

Remove the condenser (A) from radiator assembly.

6.
Install in the reverse order of removal.

•
If you're installing a new condenser, add refrigerant oil.
•
Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a to avoid leakage.
•
Be careful not to damage the radiator and condenser fins when installing the condenser.
•
Charge the system, and test its performance.
