| Component Location |

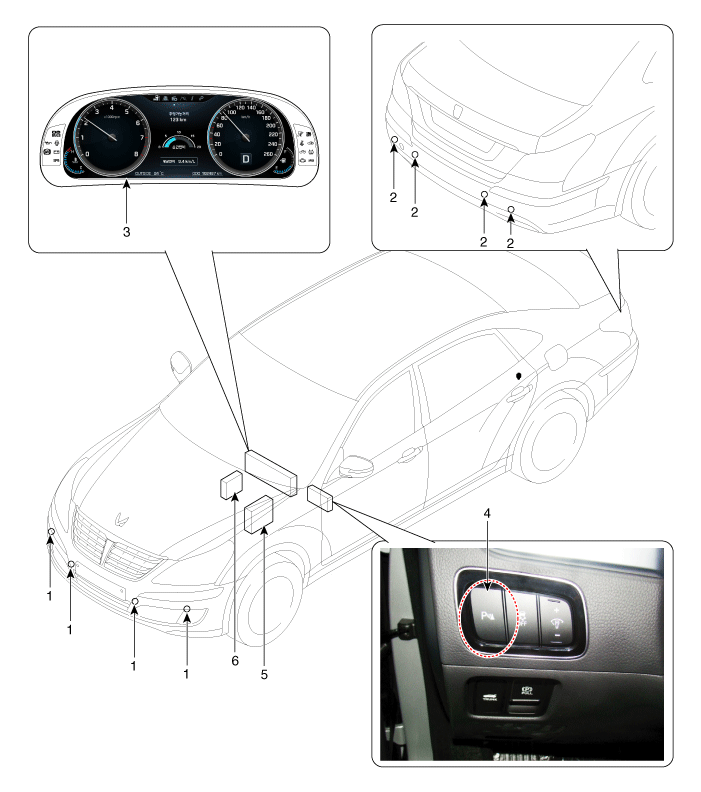

| 1 . Front PAS sensor (4EA) 2 . Rear PAS sensor (4EA) 3. Indicator (warning information displayed on LCD) | 4 . Parking Assist System (PAS) switch 5 . Body Control Module (BCM) 6. Cluster speaker |
Specifications
Specifications
ItemSpecificationFront/Rear parking assist system control unitRated voltageDC 12VOperation range30~120 cm(11.8~47.2 in)Operation voltageDC 9V~16VOperation currentMax. 300 mAOperati ...
Description and Operation
Description
When reversing, the driver is not easy to find objects in the
blind spots and to determine the distance from the object. In order to
provide the driver safety and convenience, back ...
