| Component Location |

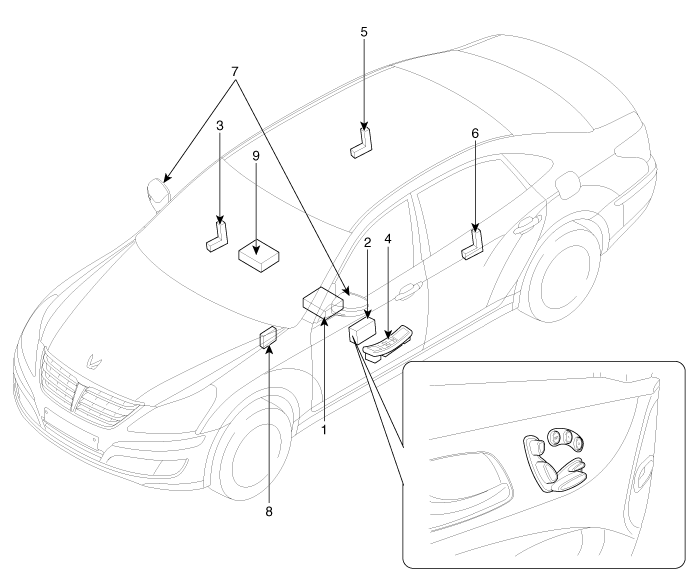

| 1. Power seat memory unit (Driver) 2. Memory power seat control switch (Driver) 3. Passenger power seat control switch 4. Outside mirror cintrol switch (Built in DDM) 5. Rear right power seat control switch & Auto switch | 6. Rear left power seat control switch & Auto switch 7. Outside mirror 8. SCM (Tilt Telescope unit) 9. Relax power seat unit (Passenger & Rear) |
Specifications
Specifications
Electrical System
Item SpecificationsSlide, Front/Rear HeightRecline/Cushion/HeadrestMain Power SeatPosition SensorOperating VoltageDC 3.8V ~ 24VConsumption CurrentTyp 3mA , Max 7mA ...
Schematic Diagrams
System Block Diagram
Power Seat Memory Unit (For Driver)
Relax Power Seat Unit (For Passenger & Rear)
Circuit Diagram (1)
Power Seat Module - PSM (For Driver)
Circuit Diagram (2)
Rel ...
