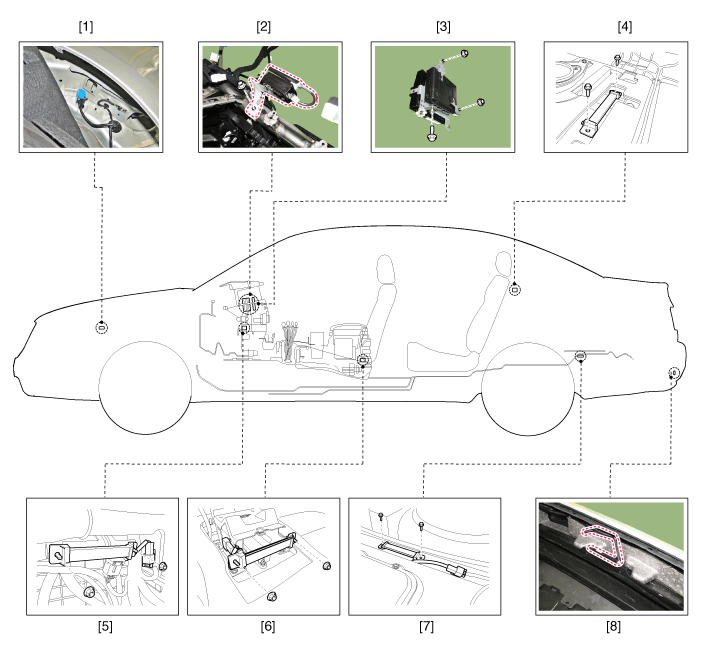

| Component Location (1) |
| 1. Buzzer 2. RF receiver 3. Smart key unit 4. Interior antenna 3 | 5. Interior antenna 1 6. Interior antenna 2 7. Trunk antenna 8. Bumper antenna |
| Component Location (2) |
| 1. Door outside handle | 2. Trunk open switch |
Specifications
Specifications
Smart Key Unit
ItemsSpecificationRated voltageDC 12VOperating voltageDC 9 ~ 16VOperating temperature-22°F ~ 167°F (-30°C ~ 75°C)LoadMax. 2.5 mA (When welcome function 3.7 mA)
...
Description and Operation
Description
Refer to the "Body Network System" for the abbreviation information.
The SMART KEY system is a system that allows the user to
access and operate a vehicle in ...
