| Component Location |

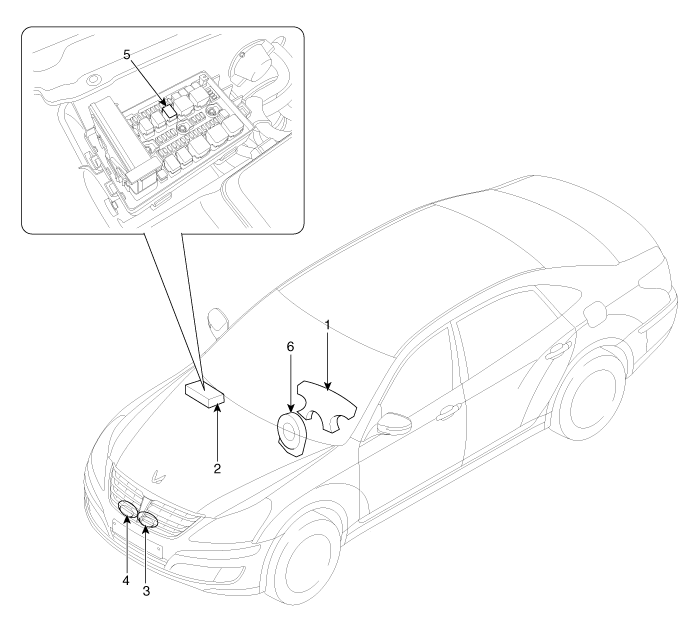

| 1. Horn switch 2. Engine room relay box 3. Horn (Low pitch) | 4. Horn (High pitch) 5. Horn relay 6. Clock spring |
Horn
...
Repair procedures
Removal
1.
Remove the front bumper cover.
(Refer to Body - "Front Bumper Cover")
2.
Remove the bolts and disconnect the horn connectors, then remove the high pitch horn (A) and low pitch horn ...
