Hyundai Equus: Muffler Components and Components Location
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Engine Mechanical System / Intake And Exhaust System / Muffler Components and Components Location
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Engine Mechanical System / Intake And Exhaust System / Muffler Components and Components Location

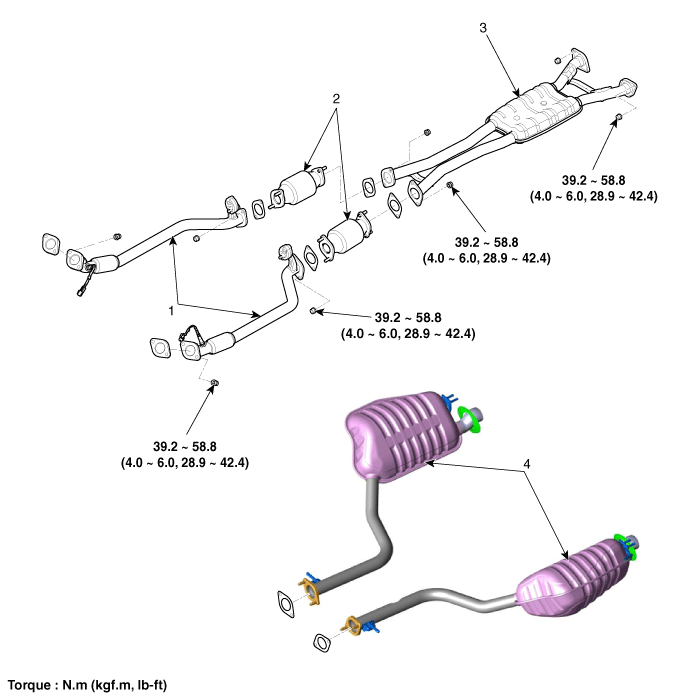

| Components |
| 1. Front muffler (LH/RH) 2. Catalytic converter | 3. Center muffler 4. Main muffler (LH/RH) |
Exhaust Manifold Repair procedures
Removal and Installation
1.
Disconnect the negative terminal (A) from the battery.
Tightening torque :
3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)
2.
Remove the engine room cover (A ...
Muffler Repair procedures
Removal
1.
Disconnect the rear oxygen sensor (HO2S) connector (A) on LH and RH side.
2.
Remove the front muffler (A) on LH and RH side.
Tightening torque :
39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m ...
