| Removal |
| 1. |
Remove the front bumper cover.
(Refer to Body - "Front Bumper Cover") |
| 2. |
Remove the bolts and disconnect the horn connectors, then remove the high pitch horn (A) and low pitch horn (B).
|
| Installation |
| 1. |
Install the horns after connecting the horn connectors. |
| 2. |
Install the front bumper cover. |
| Inspection |
Test the horn by connecting battery voltage to the 1 terminal and ground the 2 terminal.
The horn should make a sound. If the horn fails to make a sound, replace it.
Horn Relay Inspection
| 1. |

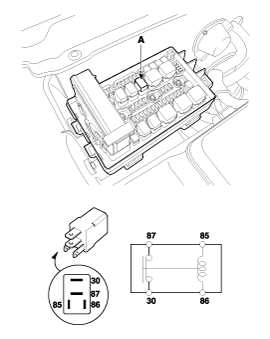

Remove the horn relay (A) from the engine room relay box. |
| 2. |
There should be continuity between the No.87and No.30
terminals when power and ground are connected to the No.85 and No.86
terminals. |
| 3. |
There should be no continuity between the No.87 and No.30 terminals when power is disconnected.
|
Components and Components Location
Component Location
1. Horn switch2. Engine room relay box3. Horn (Low pitch)4. Horn (High pitch)5. Horn relay6. Clock spring
...
