Hyundai Equus: Accelerator Position Sensor (APS) Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Hyundai Equus VI 2009-2026 Service ManualHyundai Equus: Accelerator Position Sensor (APS) Schematic Diagrams

Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Engine Control/Fuel System / Engine Control System / Accelerator Position Sensor (APS) Schematic Diagrams

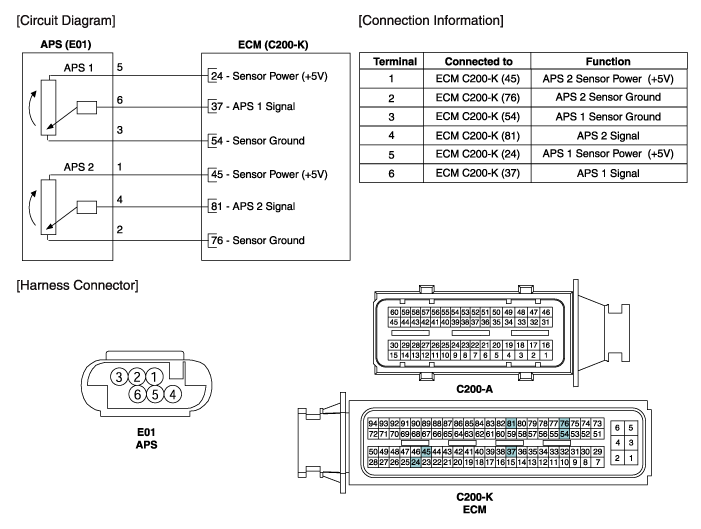

Circuit Diagram

    Accelerator Position Sensor (APS) Specifications
    Specification AcceleratorPositionOutput Voltage (V)APS1APS2C.T0.7 ~ 0.80.33 ~ 0.43W.O.T3.85 ~ 4.351.93 ~ 2.18 ...

    Accelerator Position Sensor (APS) Repair procedures
    Inspection 1. Connect a scantool on the Data Link Connector (DLC). 2. Turn the ignition switch ON. 3. Measure the output voltage of the APS 1 and 2 at C.T and W.O.T. Specification: Refe ...
