Hyundai Equus: Cluster Ion Generator Repair procedures - Air Conditioning System - Heating, Ventilation and Air Conditioning - Hyundai Equus VI 2009-2026 Service ManualHyundai Equus: Cluster Ion Generator Repair procedures

Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Heating, Ventilation and Air Conditioning / Air Conditioning System / Cluster Ion Generator Repair procedures

Inspection
1.
Press the MODE switch more then 4 times within 2 seconds while pressing the OFF switch.
Display
Fail description
00
Normal
51
Cluster ion generator fault

* For diagnostic procedure, refer to DTC guide.
Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the cowl side trim.
(Refer to Body - "Cowl Side Trim")
3.
Remove the crash pad under cover (A) by pressing the locking pin.

4.
Disconnect the under lamp connector (A).

5.
Remove the stopper (B) from the glove box (A).

6.
Disconnect the air damper (A) from the glove box (B).

7.
Remove the glove box housing (A) after loosening the mounting screws and nuts.

8.
Disconnect the glove box lamp connector (A).

9.

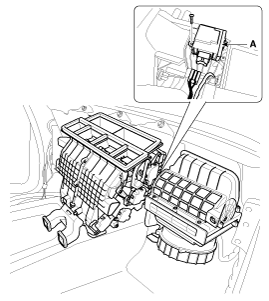

Disconnect the evaporator temperature sensor connector, and then remove the cluster ion generator (A).

10.
Install in the reverse order of removal.
