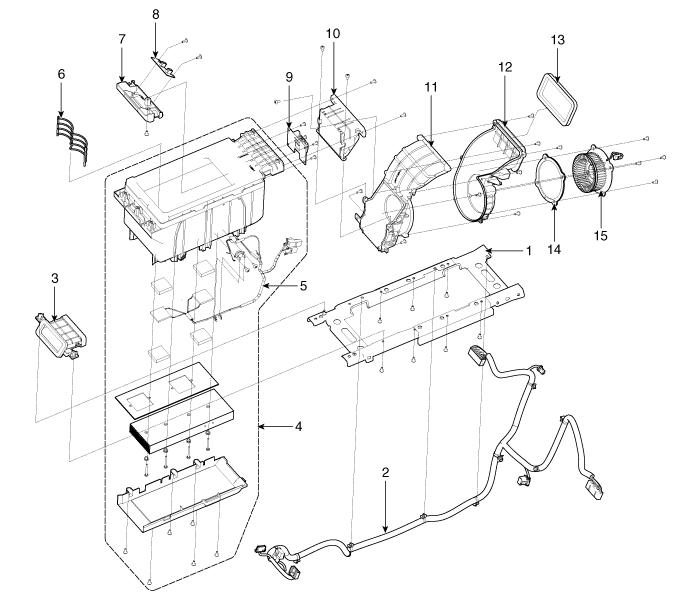

| Component Location |
| 1. Cool & Warm Box Bracket 2. Wire Harness 3. Front Duct 4. Cool & Warm Box Assembly 5. Wire Harness | 6. Cool & Warm Box Partition 7. Circuit Board Cover 8. Circuit Board 9. Circuit Board (Cool & Warm Box) 10. PCB Cover | 11. Blower Upper Case 12. Blower Lower Case 13. Blower Seal 14. Damping Seal 15. Blower Motor |
Cluster Ion Generator Repair procedures
Inspection
1.
Press the MODE switch more then 4 times within 2 seconds while pressing the OFF switch.
DisplayFail description00Normal51Cluster ion generator fault
* For diagnostic procedur ...
Cool and Warm Box Description and Operation
Description
Cool and warm box is a compartment where you can keep items cool or warm.
The sytem is a enviromentally friendly system that operates independently from the heater and A/C system.
...
