Hyundai Equus: Air Filter Components and Components Location - Air Suspension System - Suspension System - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Air Filter Components and Components Location

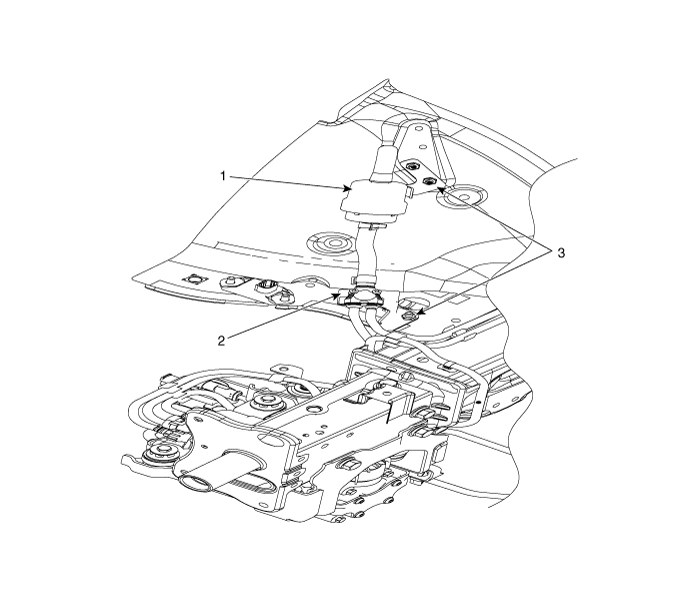

Components Location

1. Air filter
2. Y-Connector
3. Mounting bracket
