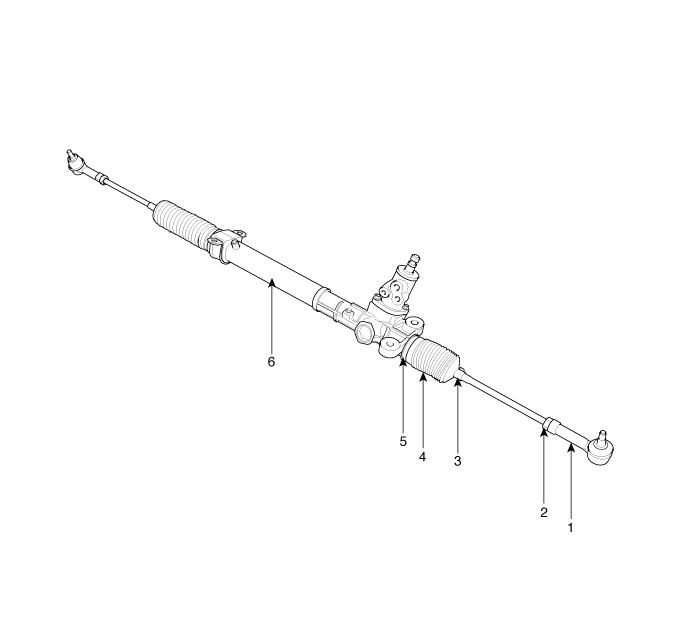

| Components |
| 1. Tie rod end 2. Lock nut 3. Bellows Clip | 4. Bellows 5. Bellows band 6. Steering gear box |
Repair procedures
Replacement
1.
Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
2.
Turn the steering wheel so that the front wheels can face straight ahead.
3.
...
Power Steering Gear Box Repair procedures
Replacement
1.
Drain the power steering fluid.
2.
Remove the front wheel & tire.
Tightening torque :
90.0 ~ 110.0 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 80.0 lb-ft)
3.
Loosen the bolt (A) ...
