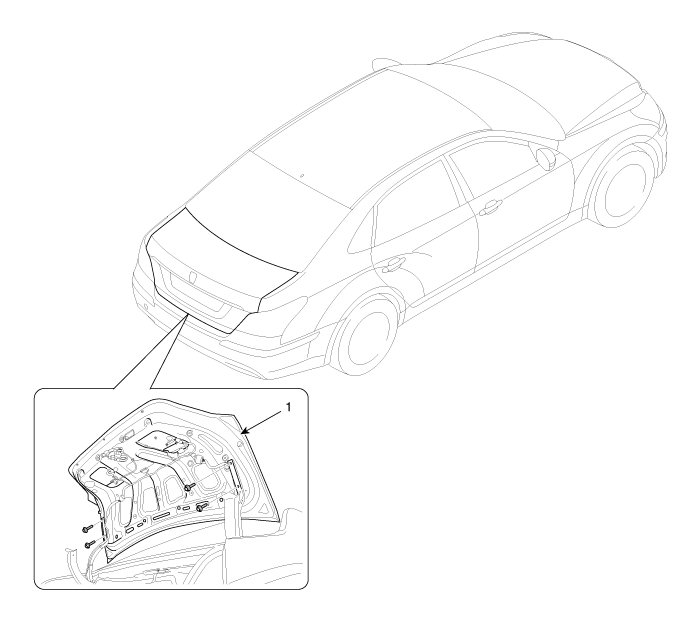

Hyundai Equus: Trunk Lid Assembly Components and Components Location

Repair procedures

Adjustment 1. After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up or down, or right or left. 2. Adjust the trunk lid height by turning the trunk lid ove ...

Trunk Lid Assembly Repair procedures

Replacement     • Wear gloves to protect hands from injury.     • When removing and installing the trunk lid, an assistant is necessary. 1. ...
