Hyundai Equus: Components and Components Location - Hydraulic System - Automatic Transmission System (SBC) - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Components and Components Location

Components Location

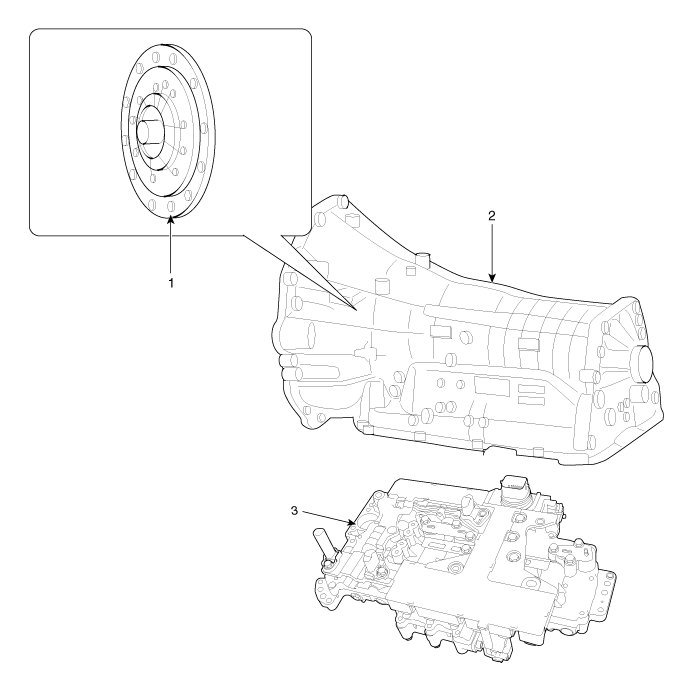

1. Oil pump assembly
2. Automatic transmission
3. Valve body assembly
4. Oil pan

    Description and Operation
    Description The hydraulic system consists of oil, an oil filter, an oil pump, and a valve body (valves and solenoid valves). The oil pump is powered by the engine. ATF passes through the oil filt ...

    Oil Pump Description and Operation
    Description The oil pump rotation builds the hydraulic pressure needed for the lubrication of the various parts of the automatice transmission and operation of the clutch and brakes. The oil ...
