Hyundai Equus: Shift Lever Components and Components Location
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Automatic Transmission System (SBC) / Automatic Transmission Control System / Shift Lever Components and Components Location
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Automatic Transmission System (SBC) / Automatic Transmission Control System / Shift Lever Components and Components Location

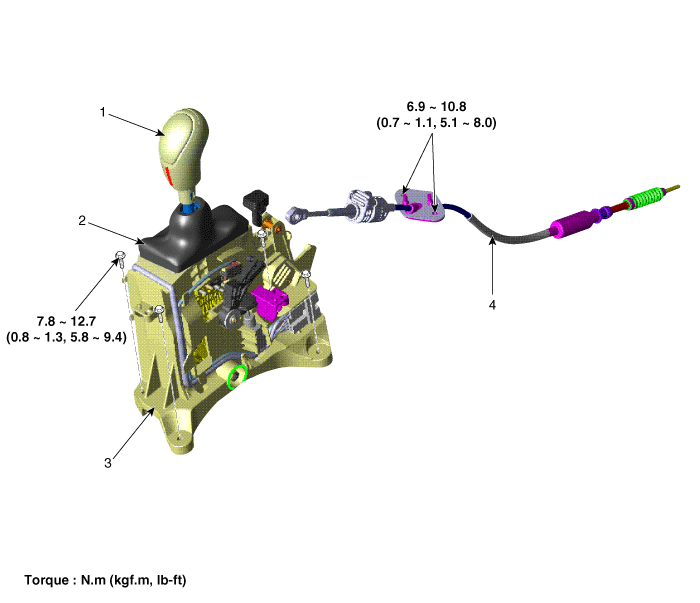

| Components |
| 1. Shift lever knob 2. Shift lever boots | 3. Shift lever assembly 4. Shift cable |
